The 36W 9V 4A desktop power adapter manufactured by Guangdong QINX is developed for electronic systems requiring stable DC output and reliable continuous power delivery. With a robust desktop-style structure and efficient switching technology, this adapter is widely used in networking devices, industrial electronics, LED systems, and intelligent control equipment.
This AC DC power supply supports universal 100-240V AC input, making it suitable for worldwide applications across different voltage environments. The advanced internal circuit design improves conversion efficiency while reducing standby energy consumption in accordance with DOE Level VI standards.

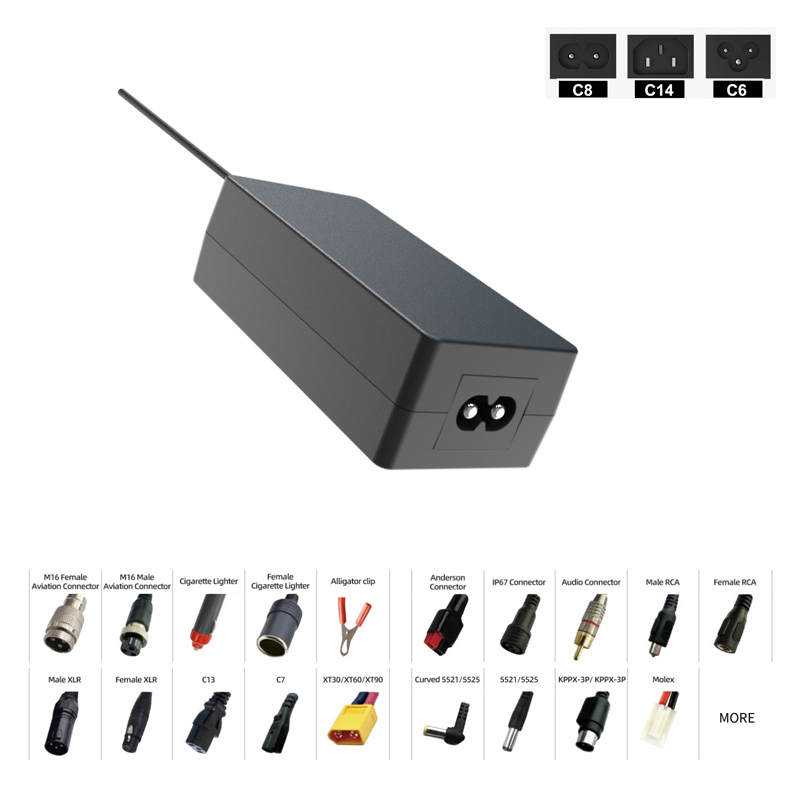

To meet diverse equipment requirements, Guangdong QINX provides a variety of DC output connector selections. Available connector types include 5.5×2.1mm, 5.5×2.5mm, 3.5×1.35mm, 4.0×1.7mm, 6.3×3.0mm, Mini DIN, Micro USB, USB Type-C, aviation connectors, and open wire terminal outputs. Customized connector configurations are also supported for OEM projects.
The adapter integrates comprehensive safety protection systems including over-voltage protection, over-load protection, short-circuit protection, and thermal protection to ensure stable operation and device safety. Guangdong QINX additionally offers flexible OEM and ODM services including private labeling, cable specification adjustment, housing color customization, connector matching, and package printing.
| Series | Models | Output Voltage/Current/Power | Energy Efficiency |
| 1W-225W SERIES DESKTOP Power Adapters |
QXP-PAD-09001000 | 9V 1A 9W | VI |
| QXP-PAD-09002000 | 9V 2A 18W | VI | |
| QXP-PAD-09003000 | 9V 3A 27W | VI | |
| QXP-PAD-09004000 | 9V 4A 36W | VI | |
| QXP-PAD-09005000 | 9V 5A 45W | VI | |
| QXP-PAD-09006000 | 9V 6A 54W | VI | |
| QXP-PAD-09007000 | 9V 7A 63W | VI | |
| QXP-PAD-09008000 | 9V 8A 72W | VI | |
| QXP-PAD-09009000 | 9V 9A 81W | VI | |
| QXP-PAD-09010000 | 9V 10A 90W | VI | |
| QXP-PAD-09011000 | 9V 11A 99W | VI | |
| QXP-PAD-09012000 | 9V 12A 108W | VI | |
| QXP-PAD-09013000 | 9V 13A 117W | VI | |
| QXP-PAD-09014000 | 9V 14A 126W | VI | |
| QXP-PAD-09015000 | 9V 15A 135W | VI | |
| QXP-PAD-09016000 | 9V 16A 144W | VI | |
| QXP-PAD-09017000 | 9V 17A 153W | VI | |
| QXP-PAD-09018000 | 9V 18A 162W | VI | |
| QXP-PAD-09019000 | 9V 19A 171W | VI | |
| QXP-PAD-09020000 | 9V 20A 180W | VI | |
| QXP-PAD-09021000 | 9V 21A 189W | VI | |
| QXP-PAD-09022000 | 9V 22A 198W | VI | |
| QXP-PAD-09023000 | 9V 23A 207W | VI | |
| QXP-PAD-09024000 | 9V 24A 216W | VI | |
| QXP-PAD-09025000 | 9V 25A 225W | VI | |
| Optional DC Connectors | 5.5*2.5, 5.5*2.1, 5.0*3.0, 4.8*1.7, 4.0*1.7, 3.5*1.35, 2.5*0.7, 6.0*3.0, 6.5*4.0, 6.5*4.4, 6.5*4.5 (6.5x1.4), 6.3*3.0, 6.0*4.4, 5.0*1.0, 5.1*7.4, 5.0*7.4, 5.5*1.7, 6.4*4.0, 6.0*3.7, Center pin, Cigarette lighter, 2pin, 3pin, Micro USB, Mini USB, RJ11, Straight Barrel, Right Angle Barrel, KPPX-3P/4P, Molex 2 pin, Molex 6 pin, XT30/XT60/XT90, M16, Alligator dip, Anderson Torberry, Audio, RCA, XLR, D-tap, IP type, GX12/16/20, Circular type, Ez-go, LP20-3pin, Stripped and Tinned Leads, Typc C, Minifit-Molex, C14, C13, 9pin "D" Type, 4 pin/prong-Din, 6-Pin Molex Connector, 4 Pin Mini Din, Aviation Plugs, 8-PIN DIN, Coaxial, Crocodile clip, M19, 2/3-Pin Terminal Blocks, Switchcraft S760K, 3 pin 4 pin XLR Female/Male, CJT C2020HF-2P, CJT C2020F-TP, GT193110-02021-XX, GT193110-02021-01, GT193119-02021-01, SAE, WJ15EDGKM-3.81-2P, open wire, GX16 2 pin aviation, CNLINKO LP20 connector LP-20-C02PE-02-004B, LP-20-C02PE-01-022 connector, LP-20-C02PE-01-024, LP-20-C03PE-01-001A, LP-20-C03PE-01-022DC, CNLINKO YA20 connector YA-20-J04PE-01-001 YA-20-C04SX-03-201...... | ||
| Email us at info@qinxpsu.com if you need customized service. | |||
