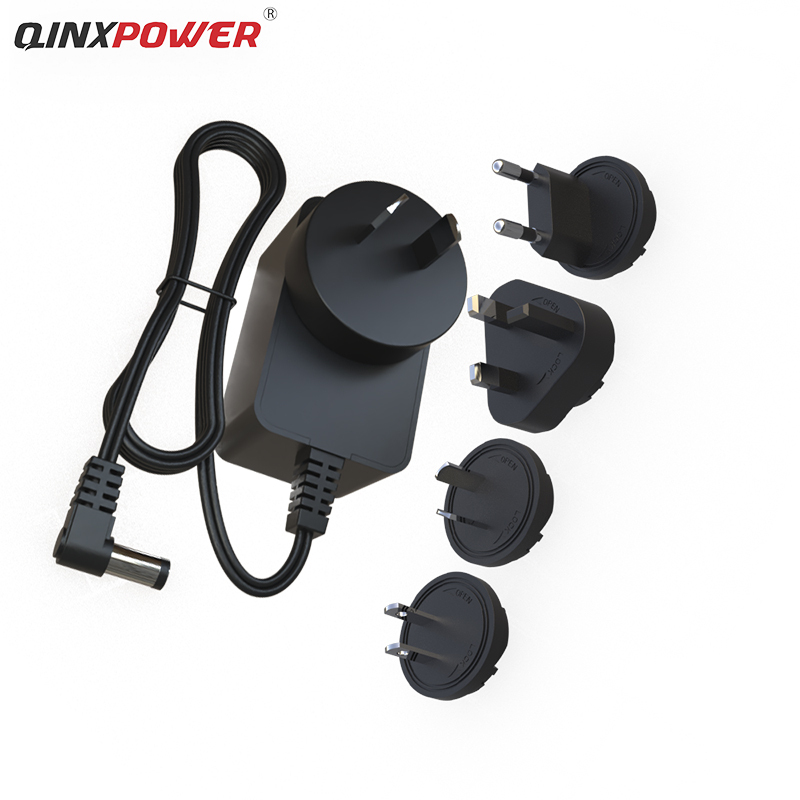

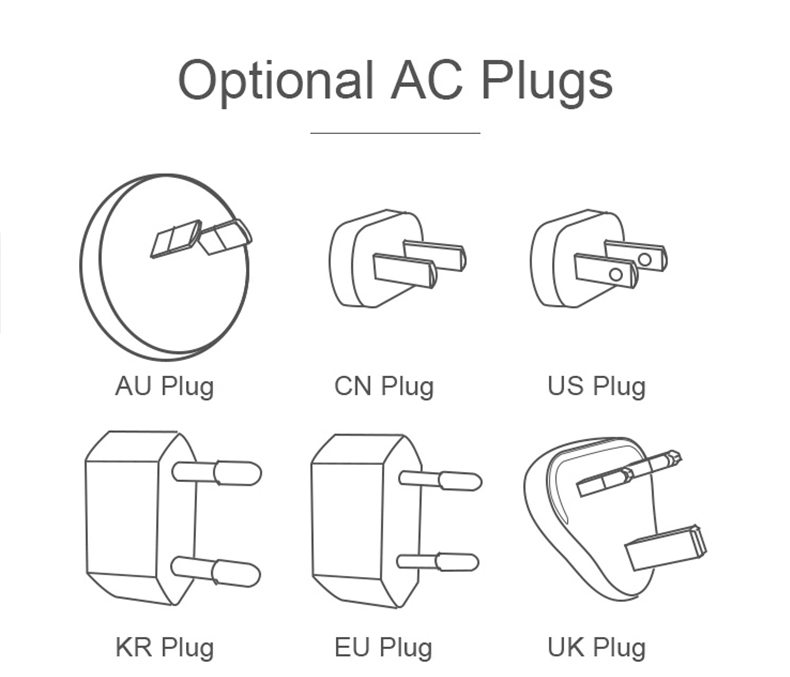

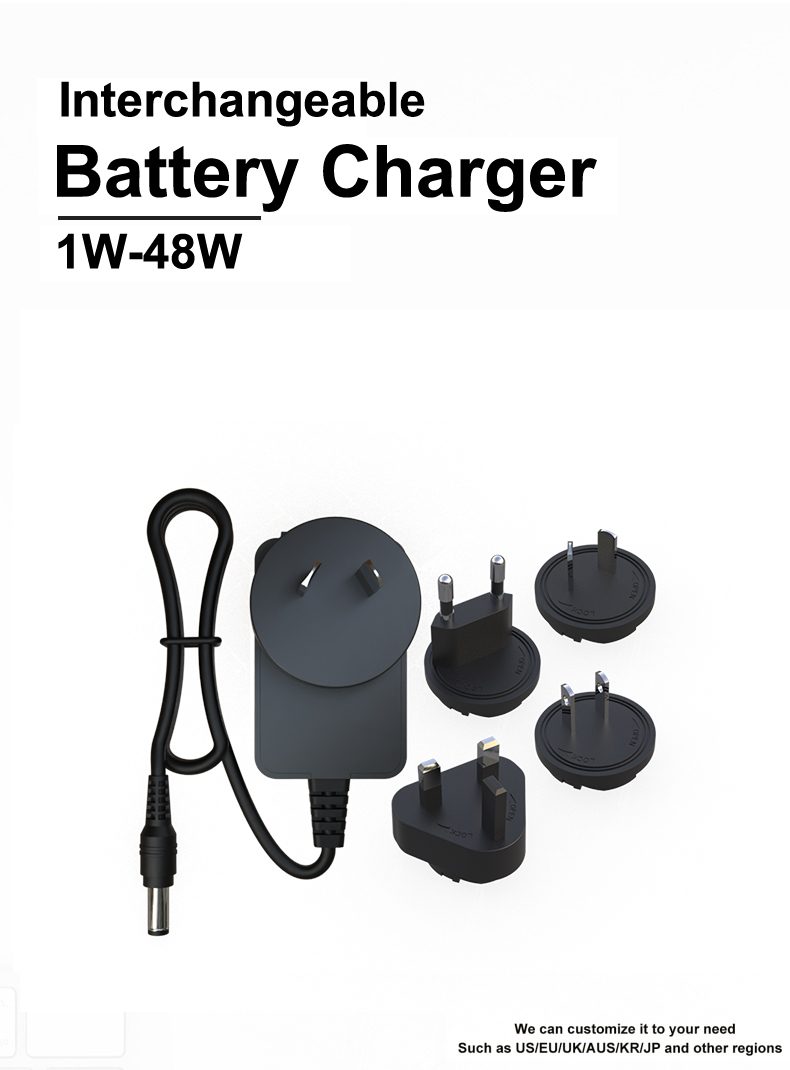

The QINXPOWER® interchangeable battery charger series offers compact and versatile charging solutions with detachable US, UK, AU, and EU plugs for global compatibility. Ranging from 1W to 48W and supporting output voltages from 4.2V to 37.8V, these chargers are ideal for Lithium-ion, LiFePO4, and Lead Acid batteries used in electronic devices, LED systems, portable equipment, and small appliances.
| Lithium Li-ion Battery Charger | ||||||||||||
| Battery Cells Series |
1S | 2S | 3S | 4S | 5S | 6S | 7S | 8S | 9S | ...... | ||
| Battery Voltage | 3.7V | 7.4V | 11.1V | 14.8V | 18.5V | 22.2V | 25.9V | 29.6V | 33.3V | ...... | ||
| Charger Voltage | 4.2V | 8.4V | 12.6V | 16.8V | 21V | 25.2V | 29.4V | 33.6V | 37.8V | ...... | ||
| LiFePO4 Battery Charger | ||||||||||||
| Battery Cells Series |
1S | 2S | 3S | 4S | 5S | 6S | 7S | 8S | 9S | ...... | ||
| Battery Voltage | 3.2V | 6.4V | 9.6V | 12.8V | 16V | 19.2V | 22.4V | 25.6V | 28.8V | ...... | ||
| Charger Voltage | 3.65V | 7.3V | 11V | 14.6V | 18.3V | 21.9V | 25.6V | 29.2V | 32.9V | ...... | ||
| Lead Acid Battery Charger | ||||||||||||
| Battery Cells Series |
1S | 2S | 3S | 4S | 5S | 6S | ||||||
| Battery Voltage | 12V | 24V | 36V | 48V | 60V | 72V | ||||||
| Charger Voltage | 14.6V | 29.2V | 43.8V | 58.4V | 73V | 87.6V | ||||||
| Charger Current | 0.1A-3A | |||||||||||
| Power | 1W-72W | |||||||||||

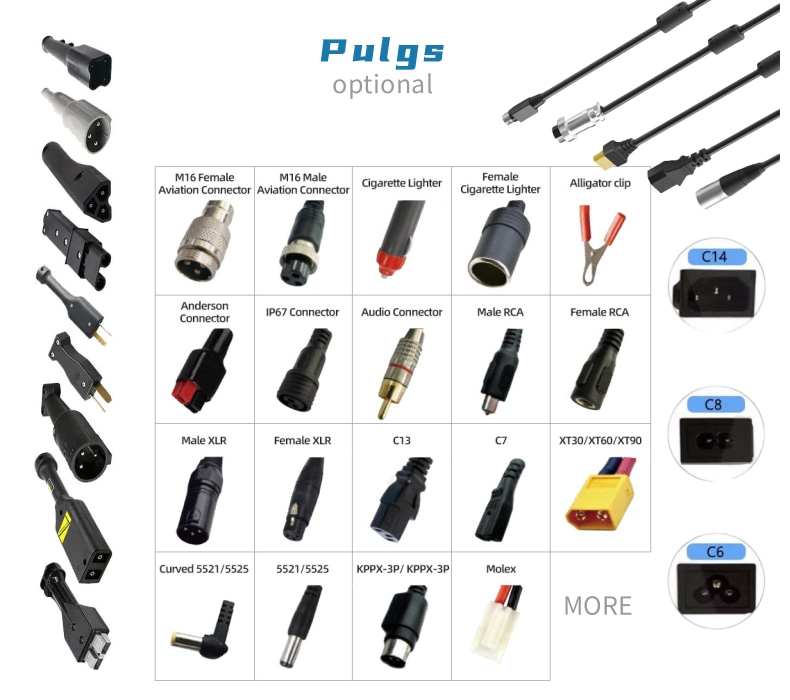

| DC plug/connector | 5.5*2.5, 5.5*2.1, 5.0*3.0, 4.8*1.7, 4.0*1.7, 3.5*1.35, 2.5*0.7, 6.0*3.0, 6.5*4.0, 6.5*4.4, 6.3*3.0, 6.0*4.4, 5.0*1.0, 5.1*7.4, 5.0*7.4, 5.5*1.7, 6.4*4.0, 6.0*3.7, Cigarette lighter, 2pin, 3pin, Micro USB, Mini USB, RJ11, Straight Barrel, Right Angle Barrel, KPPX-3P/4P, Molex 2 pin, Molex 6 pin, XT30/XT60/XT90, M16, Alligator dip, Anderson Torberry, Audio, RCA, XLR, D-tap, IP type, GX12/16/20, Circular type, Ez-go, LP20-3pin, Stripped and Tinned Leads, Typc C, Minifit-Molex, C14, C13, 9pin "D" Type, 4 pin/prong-Din, 6-Pin Molex Connector, 4 Pin Mini Din, Aviation Plugs, 8-PIN DIN, Coaxial, Crocodile clip, M19, 2/3-Pin Terminal Blocks, Switchcraft S760K, 3 pin 4 pin XLR Female/Male, CJT C2020HF-2P, CJT C2020F-TP, GT193110-02021-XX, SAE, WJ15EDGKM-3.81-2P, YA-20-J04PE-01-001, open wire, GX16 2 pin aviation...... | |||||||||||
| Certiticate | UL cUL SAA PSE UKCA CE RoHS FCC DOE VI CB | |||||||||||
| Email us at info@qinxpsu.com if you need customized service. | ||||||||||||
