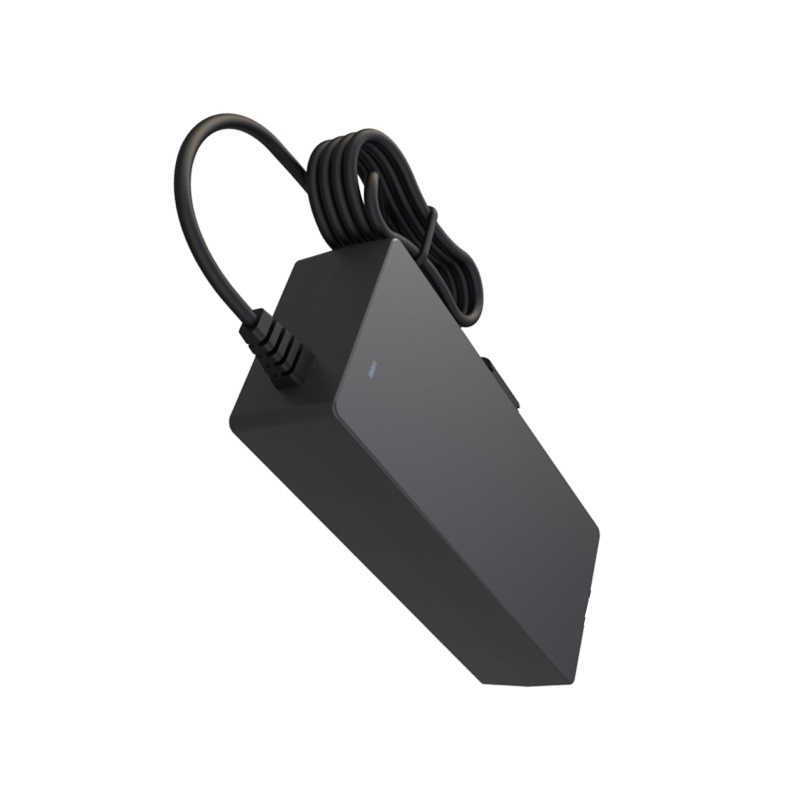

The 171W 19V 9A desktop power adapter from Guangdong QINX is designed to provide high-current DC output for equipment that demands dependable performance and long operating life. Built with advanced power conversion technology, this adapter delivers stable 19V power while maintaining high efficiency and excellent electrical reliability.
Supporting a worldwide 100-240V AC input range, the adapter can be deployed across international markets without requiring additional voltage conversion. The regulated output minimizes voltage variation and helps protect connected electronics during continuous operation. Compliance with DOE Level VI efficiency requirements further enhances energy-saving performance.

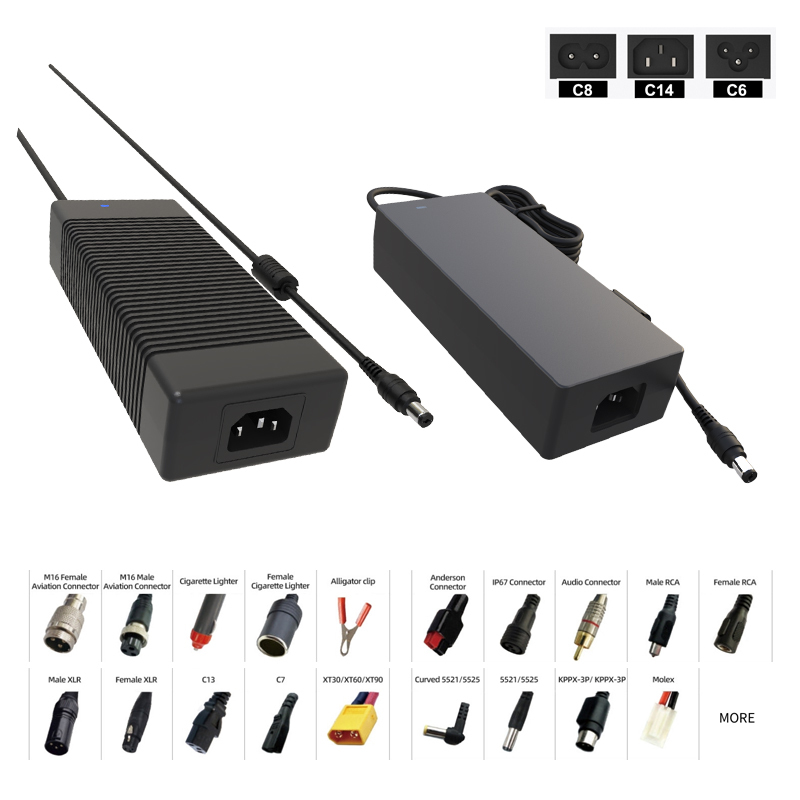

Guangdong QINX offers a wide range of DC connector solutions to support different equipment interfaces. Available connector options include 5.5×2.1mm, 5.5×2.5mm, 7.4×5.0mm, 6.5×4.4mm, 4.0×1.7mm, 2.5×0.7mm, mini DIN connectors, JST connectors, screw terminal outputs, and open-wire leads. Customized connector assemblies can be developed according to customer requirements.
For operational safety, the adapter includes over-current protection, over-voltage protection, overload protection, short-circuit protection, and thermal protection. Guangdong QINX additionally provides OEM and ODM services covering cable specifications, branding, housing customization, output connectors, and packaging design.
Typical Applications
| Series | Models | Output Voltage/Current/Power | Energy Efficiency |
| 1W-418W SERIES DESKTOP Power Adapters |
QXP-PAD-19001000 | 19V 1A 19W | VI |
| QXP-PAD-19002000 | 19V 2A 38W | VI | |
| QXP-PAD-19002500 | 19V 2.5A 47.5W | VI | |
| QXP-PAD-19003000 | 19V 3A 57W | VI | |
| QXP-PAD-19003420 | 19V 3.42A 65W | VI | |
| QXP-PAD-19004000 | 19V 4A 76W | VI | |
| QXP-PAD-19005000 | 19V 5A 95W | VI | |
| QXP-PAD-19006000 | 19V 6A 114W | VI | |
| QXP-PAD-19007000 | 19V 7A 133W | VI | |
| QXP-PAD-19007900 | 19V 7.9A 150.1W | VI | |
| QXP-PAD-19008000 | 19V 8A 152W | VI | |
| QXP-PAD-19009000 | 19V 9A 171W | VI | |
| QXP-PAD-19010000 | 19V 10A 190W | VI | |
| QXP-PAD-19010500 | 19V 10.5A 199.5W | VI | |
| QXP-PAD-19011000 | 19V 11A 209W | VI | |
| QXP-PAD-19012000 | 19V 12A 228W | VI | |
| QXP-PAD-19012600 | 19V 12.6A 239.4W | VI | |
| QXP-PAD-19013000 | 19V 13A 247W | VI | |
| QXP-PAD-19014000 | 19V 14A 266W | VI | |
| QXP-PAD-19015000 | 19V 15A 285W | VI | |
| QXP-PAD-19016000 | 19V 16A 304W | VI | |
| QXP-PAD-19017000 | 19V 17A 323W | VI | |
| QXP-PAD-19018000 | 19V 18A 342W | VI | |
| QXP-PAD-19019000 | 19V 19A 361W | VI | |
| QXP-PAD-19020000 | 19V 20A 380W | VI | |
| QXP-PAD-19021000 | 19V 21A 399W | VI | |
| QXP-PAD-19022000 | 19V 22A 418W | VI | |
| Optional DC Connectors | 5.5*2.5, 5.5*2.1, 5.0*3.0, 4.8*1.7, 4.0*1.7, 3.5*1.35, 2.5*0.7, 6.0*3.0, 6.5*4.0, 6.5*4.4, 6.5*4.5 (6.5x1.4), 6.3*3.0, 6.0*4.4, 5.0*1.0, 5.1*7.4, 5.0*7.4, 5.5*1.7, 6.4*4.0, 6.0*3.7, Center pin, Cigarette lighter, 2pin, 3pin, Micro USB, Mini USB, RJ11, Straight Barrel, Right Angle Barrel, KPPX-3P/4P, Molex 2 pin, Molex 6 pin, XT30/XT60/XT90, M16, Alligator dip, Anderson Torberry, Audio, RCA, XLR, D-tap, IP type, GX12/16/20, Circular type, Ez-go, LP20-3pin, Stripped and Tinned Leads, Typc C, Minifit-Molex, C14, C13, 9pin "D" Type, 4 pin/prong-Din, 6-Pin Molex Connector, 4 Pin Mini Din, Aviation Plugs, 8-PIN DIN, Coaxial, Crocodile clip, M19, 2/3-Pin Terminal Blocks, Switchcraft S760K, 3 pin 4 pin XLR Female/Male, CJT C2020HF-2P, CJT C2020F-TP, GT193110-02021-XX, GT193110-02021-01, GT193119-02021-01, SAE, WJ15EDGKM-3.81-2P, open wire, GX16 2 pin aviation, CNLINKO LP20 connector LP-20-C02PE-02-004B, LP-20-C02PE-01-022 connector, LP-20-C02PE-01-024, LP-20-C03PE-01-001A, CNLINKO YA20 connector YA-20-J04PE-01-001 YA-20-C04SX-03-201...... | ||
| Email us at info@qinxpsu.com if you need customized service. | |||
