When choosing a power adapter, most people pay attention to output voltage and wattage. However, output current is equally important.
The current rating of a power adapter tells you how much electrical current the adapter is designed to provide to a connected load under its specified operating conditions.
Understanding power adapter current helps you avoid common mistakes such as selecting an adapter with insufficient current capacity, confusing watts with amps, or assuming that a higher current-rated adapter will automatically force more current into your device.
In simple terms, a regulated power adapter normally does not force its maximum rated current into a device. The connected load draws the current it requires, provided that the adapter can supply that current at the correct voltage and with compatible electrical characteristics.
There is no universal minimum current rating for every power adapter. Depending on the application, an adapter can be designed for very low-current electronic devices or for higher-power equipment requiring substantial current.
For Guangdong QINX Technology Co., Ltd., AC/DC power adapter solutions can be designed for different output-current requirements, with solutions extending up to 25A depending on output voltage, power level, product architecture, connector, cable, thermal design, and application requirements.
This guide explains what power adapter current means, how amps relate to volts and watts, how to calculate current, how to select the correct current rating, what happens when the current rating is too low, and what should be considered when designing or sourcing a power adapter.

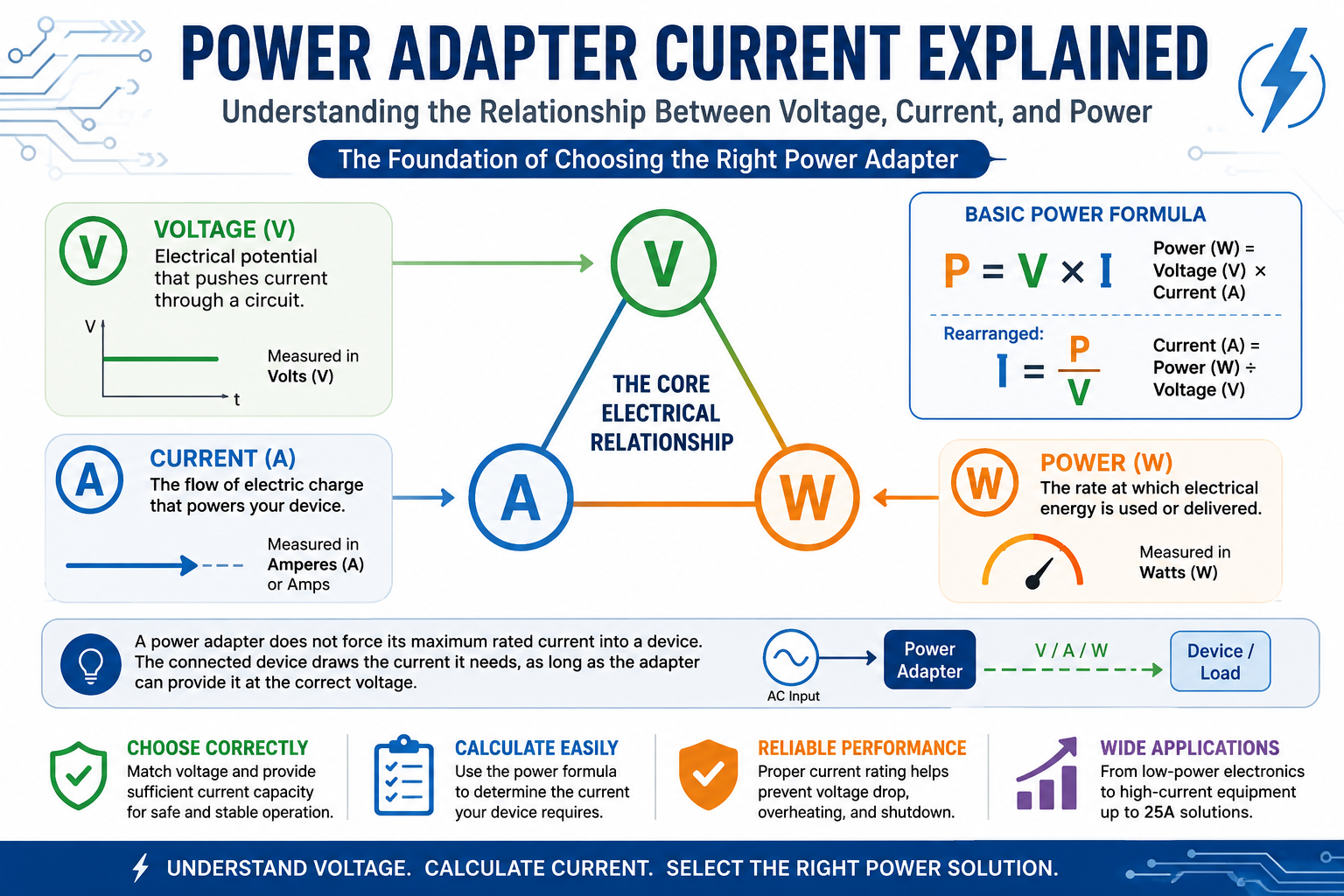

Power adapter current is the amount of electrical current that a power adapter can provide to a connected device at its specified output voltage.
Current is measured in amperes, commonly abbreviated as A or amps.
For example:
The current rating is normally printed on the power adapter label or specified in the technical datasheet.
A typical specification might look like:
Output: 12V DC 5A
This means the power adapter is designed to provide a regulated 12V DC output and can supply up to 5A under its specified operating conditions.
It does not mean that the adapter continuously pushes 5A into every device connected to it.
The actual current drawn depends primarily on the electrical characteristics of the connected load.
No, not normally.
This is one of the most important concepts when selecting a power adapter.
Suppose you have:
12V 5A power adapter
and connect it to a device that requires:
12V 2A
For a conventional regulated constant-voltage load, the device will normally draw approximately the current it requires.
The adapter’s 5A rating represents its available current capacity, not a mandatory 5A current that is forced into the device.
In simplified terms:
Power adapter current rating = maximum available current capacity
rather than:
Power adapter current rating = current always forced into the device
This is why a higher-current-rated adapter can often power a device safely when the output voltage, polarity, connector, power rating, and other electrical characteristics are compatible.
The opposite situation is more problematic.
If a device requires 4A but the selected adapter is rated at only 2A, the adapter may be unable to supply sufficient current. Depending on the adapter design and load behavior, this can result in:
For this reason, current capacity should always be considered together with voltage and total power requirements.
Important: The higher-current principle described above applies primarily to conventional regulated constant-voltage power adapters. Battery chargers, constant-current LED drivers, USB-C PD systems, and other specialized power systems may operate according to different control methods and should be evaluated according to their specific requirements.
For a more detailed explanation, see: Can I Use A Higher Amp Power Adapter?

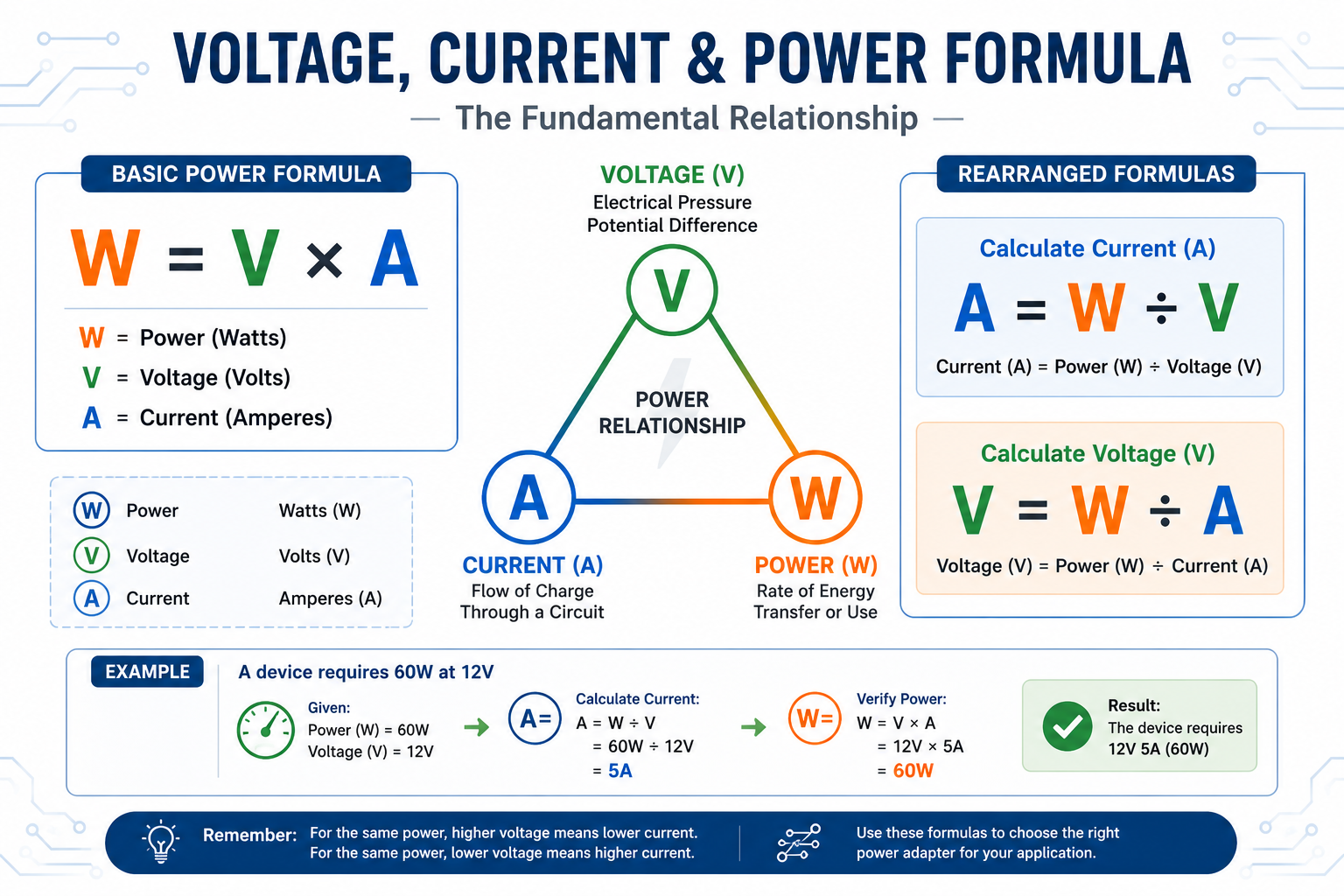

Voltage, current, and power are closely related electrical quantities.
The basic electrical power formula is:
Power (W) = Voltage (V) × Current (A)
Therefore:
Current (A) = Power (W) ÷ Voltage (V)
For example, if a device requires 60W at 12V:
60W ÷ 12V = 5A
Therefore, a 12V 5A power adapter provides a nominal maximum output power of:
12V × 5A = 60W
Similarly:
24V × 5A = 120W
This demonstrates why the same current rating does not necessarily mean the same power.
A 5A adapter at 12V is:
12V × 5A = 60W
A 5A adapter at 24V is:
24V × 5A = 120W
For this reason, power adapter current should never be evaluated independently from output voltage.
Current and wattage describe different electrical characteristics.
The relationship is:
W = V × A
|
Output Voltage |
Output Current |
Approx. Output Power |
|---|---|---|
|
5V |
2A |
10W |
|
9V |
2A |
18W |
|
12V |
2A |
24W |
|
12V |
5A |
60W |
|
15V |
4A |
60W |
|
19V |
3.16A |
60W |
|
24V |
5A |
120W |
|
24V |
10A |
240W |
The table illustrates an important point: current requirements depend on voltage.
A device requiring 120W could theoretically use different voltage/current combinations.
For example:
12V × 10A = 120W
or:
24V × 5A = 120W
The wattage is the same, but the voltage and current requirements are different.
Therefore, you should never select a power adapter based only on wattage without checking the required output voltage and current.
There is no universal minimum output current for all power adapters.
The appropriate current rating depends on the application.
A small electronic device may require only a fraction of an ampere, while industrial equipment or higher-power electronic systems may require several amps.
The important question is not:
“What is the minimum current a power adapter should have?”
Instead, ask:
“How much current does my device require at its specified voltage?”
For example, if a device requires:
12V 0.5A
a suitable power adapter may be selected around the application’s load requirement, with an appropriate design margin.
If another device requires:
12V 8A
a substantially higher-current power adapter is required.
Therefore, current should be selected according to the actual application rather than according to a universal minimum value.
Power adapter current has no single universal maximum across all adapter types.
The maximum current depends on factors including:
For Guangdong QINX, AC/DC power adapter solutions can be designed with output current up to 25A for appropriate applications and configurations.
However, 25A should not be interpreted as a universal rating for every power adapter or every voltage/power combination.
For example, from a theoretical electrical calculation:
5V × 25A = 125W
12V × 25A = 300W
24V × 25A = 600W
These calculations show the theoretical power represented by a voltage/current combination. They do not mean that every QINX power adapter platform supports all of these combinations.
For QINX AC/DC power adapters, the available current and voltage combinations must also comply with the applicable product architecture and power range. QINX AC/DC power adapter solutions are designed up to 420W, while the maximum current can reach 25A depending on the specific configuration.
As current and power increase, more attention must be paid to:
For high-power AC/DC designs, power factor correction (PFC) and other input-side engineering requirements may also need to be considered according to the product power level, current configuration, target market, and applicable standards.
If you know the device’s voltage and power requirement, you can calculate the required current.
Use:
Current = Power ÷ Voltage
Suppose a device requires:
24W at 12V
Calculation:
24W ÷ 12V = 2A
The theoretical current requirement is 2A.
A suitable power adapter therefore needs to provide 12V and sufficient current capacity for the application.
Suppose a device requires:
60W at 12V
Calculation:
60W ÷ 12V = 5A
The calculated current is 5A.
Therefore, a 12V adapter with insufficient current capacity would not be an appropriate choice.
Suppose equipment requires:
120W at 24V
Calculation:
120W ÷ 24V = 5A
The required current is 5A.
This corresponds to:
24V 5A / 120W
Suppose equipment requires:
240W at 24V
Calculation:
240W ÷ 24V = 10A
The calculated current is 10A.
This is already a substantially higher-current application and requires more attention to cable, connector, thermal, and protection requirements.

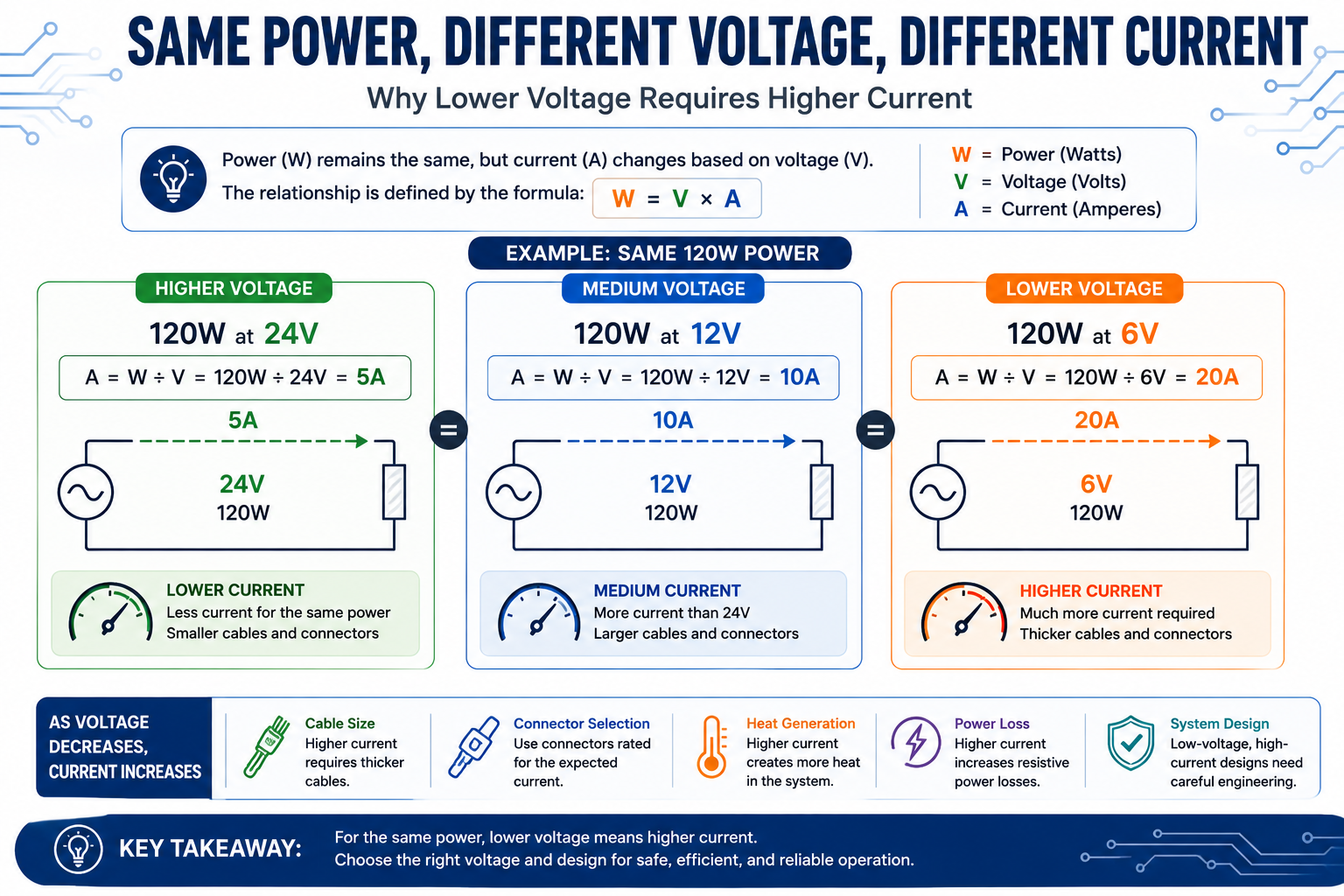

The formula:
W = V × A
explains this relationship.
For the same power, reducing voltage requires increasing current.
Consider a 120W load.
At 24V:
120W ÷ 24V = 5A
At 12V:
120W ÷ 12V = 10A
At 6V:
120W ÷ 6V = 20A
The power remains 120W, but the current increases significantly as voltage decreases.
This is particularly important for low-voltage, high-current applications.
High current can affect:
For high-current applications, the power supply should therefore be evaluated as a complete system rather than simply selecting a product with a higher amp rating.

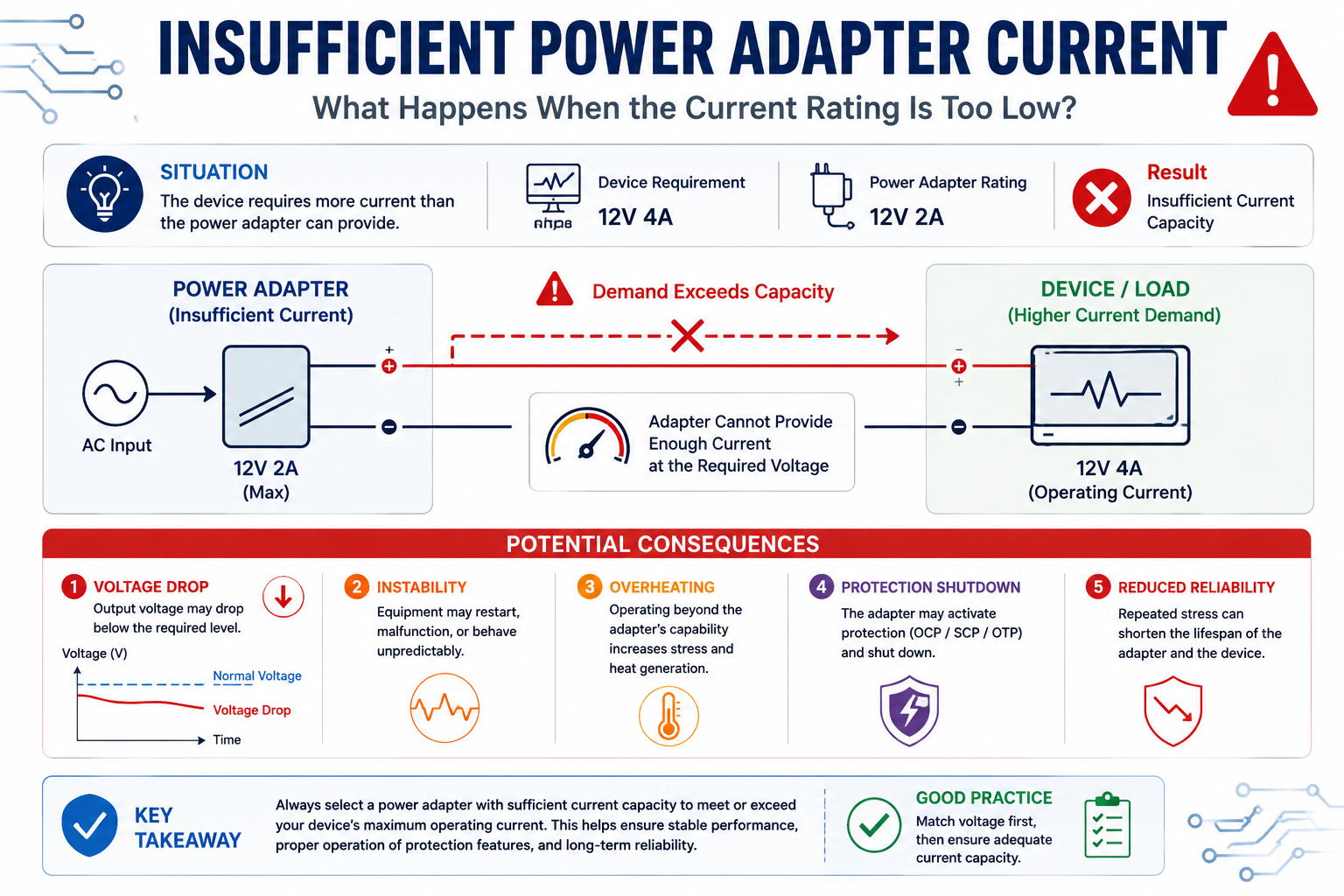

Using a power adapter with insufficient current capacity can cause several problems.
When a load demands more current than the adapter can comfortably provide, the output voltage may decrease depending on the adapter’s design and protection behavior.
The connected equipment may then operate outside its intended voltage range.
Some electronic equipment may repeatedly restart, shut down, or behave unpredictably if the power supply cannot maintain the required output.
Operating an adapter beyond its intended current capability can increase electrical and thermal stress.
A properly designed power adapter may enter a protection mode when the load exceeds its specified operating range.
Protection mechanisms can include:
Repeated operation near or beyond the adapter’s intended limits may negatively affect long-term reliability.
For this reason, the adapter should be selected with sufficient capacity rather than intentionally undersized.

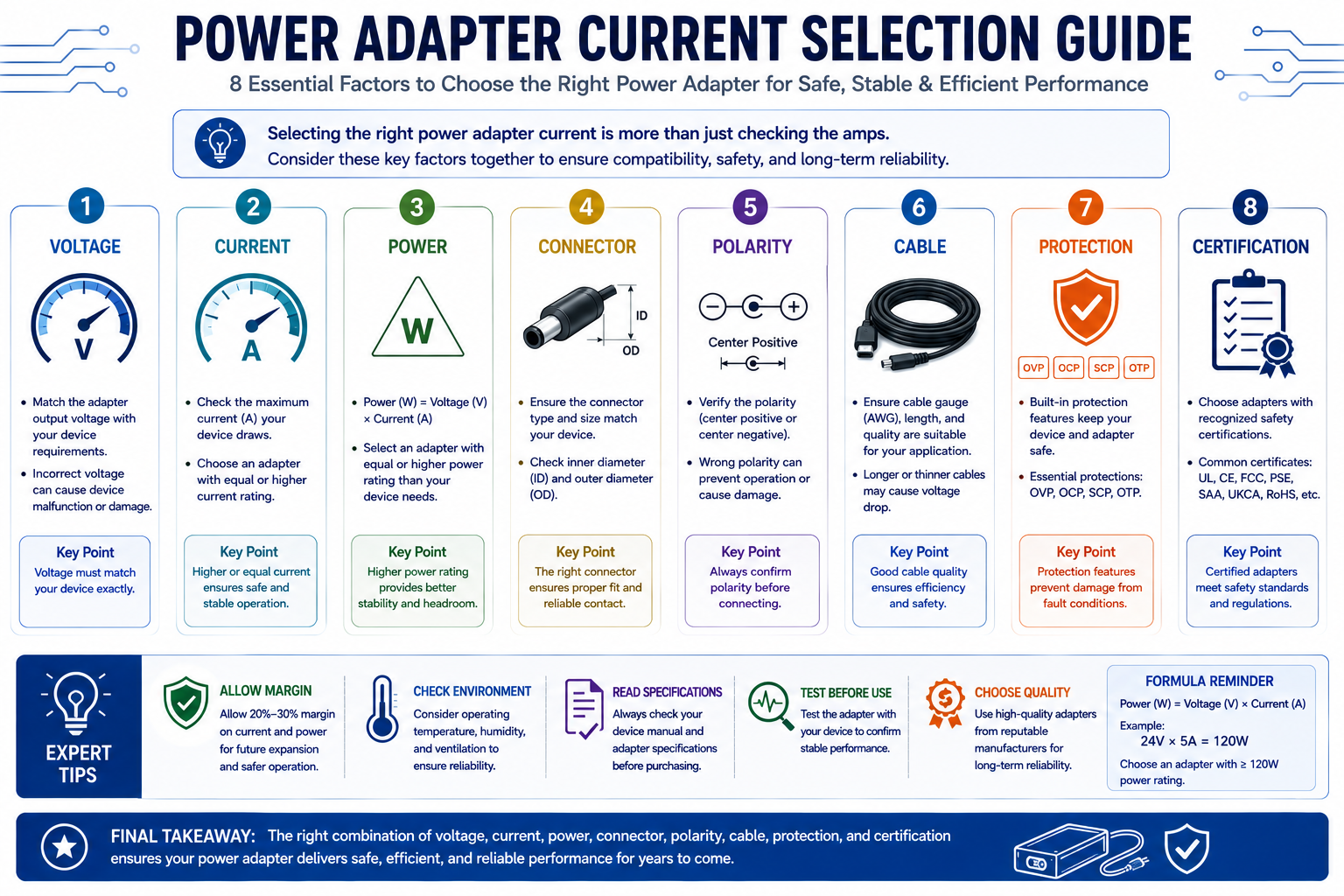

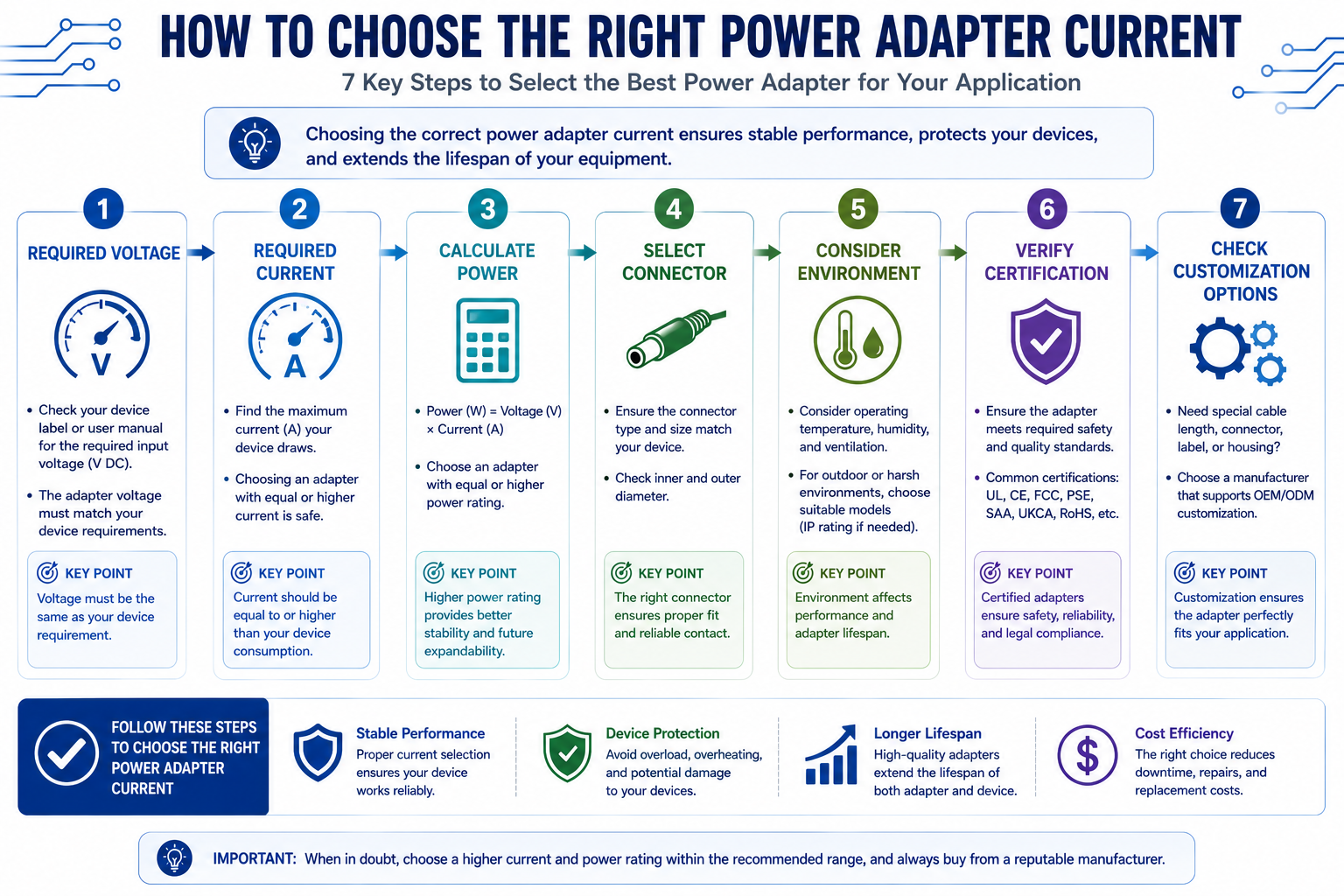

The correct current rating depends on the actual load.
As a general selection principle, the adapter should have sufficient current capacity to support the device’s maximum expected operating current, while also considering startup current, load variation, operating environment, and the adapter’s specified operating conditions.
For example, if the device requires:
12V 3A
you should not select a:
12V 2A
adapter.
A 12V 3A adapter meets the nominal current requirement.
Depending on the application, a higher-capacity solution may also be appropriate if all other specifications are compatible.
However, a larger current rating should not replace checking the complete electrical specification.
Always verify:
An appropriate current margin should be determined according to the application rather than applying one fixed percentage to every power adapter project.
Not normally.
A power adapter’s current rating indicates how much current it can provide.
It does not normally determine exactly how much current the load consumes.
For example, consider a device requiring:
12V 2A
A compatible:
12V 2A
adapter can provide the required current.
A compatible:
12V 5A
adapter has greater current capacity.
The device does not automatically become a 5A load simply because the adapter is rated at 5A.
The device determines its operating current based on its electrical characteristics.
However, this principle assumes that the voltage, polarity, connector, and other electrical specifications are correct and that the load is a conventional regulated constant-voltage application. For a dedicated discussion of this topic, see Can I Use A Higher Amp Power Adapter?

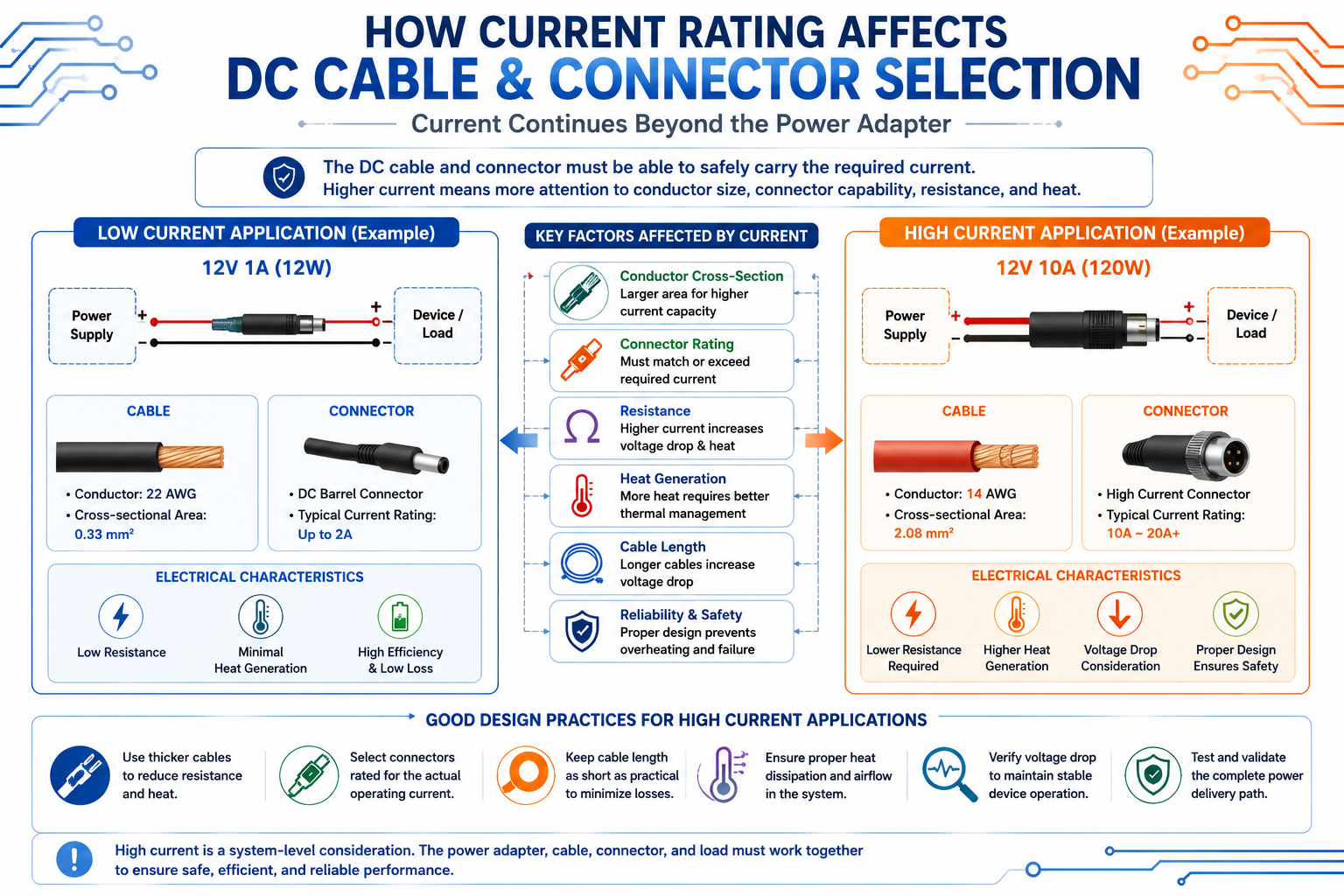

Current does not stop at the power adapter output.
The DC cable and connector must also be capable of carrying the required current.
This is particularly important for higher-current applications.
For example, a low-current electronic product may use a relatively small DC connector and cable.
A higher-current application may require:
The cable itself has resistance.
When current flows through resistance, electrical power is dissipated as heat.
Therefore, as current increases, cable and connector design becomes increasingly important.
For a high-current power supply, specifying only:
Voltage + Amps
may not be enough.
A complete engineering specification should also consider the cable and connector system.
For more information about connector selection, see Common DC Connector Types Explained.
Current cannot be evaluated independently from voltage.
Suppose a device requires:
24V 5A
This represents:
24V × 5A = 120W
A:
12V 10A
adapter also provides approximately:
120W
However, that does not make it a suitable replacement.
The voltage requirement is different.
This is why matching wattage alone is not sufficient when selecting a power adapter.
The correct selection process should begin with the required output voltage and then verify the required current and power.
For more information about output voltage selection, see Power Adapter Voltage Explained.

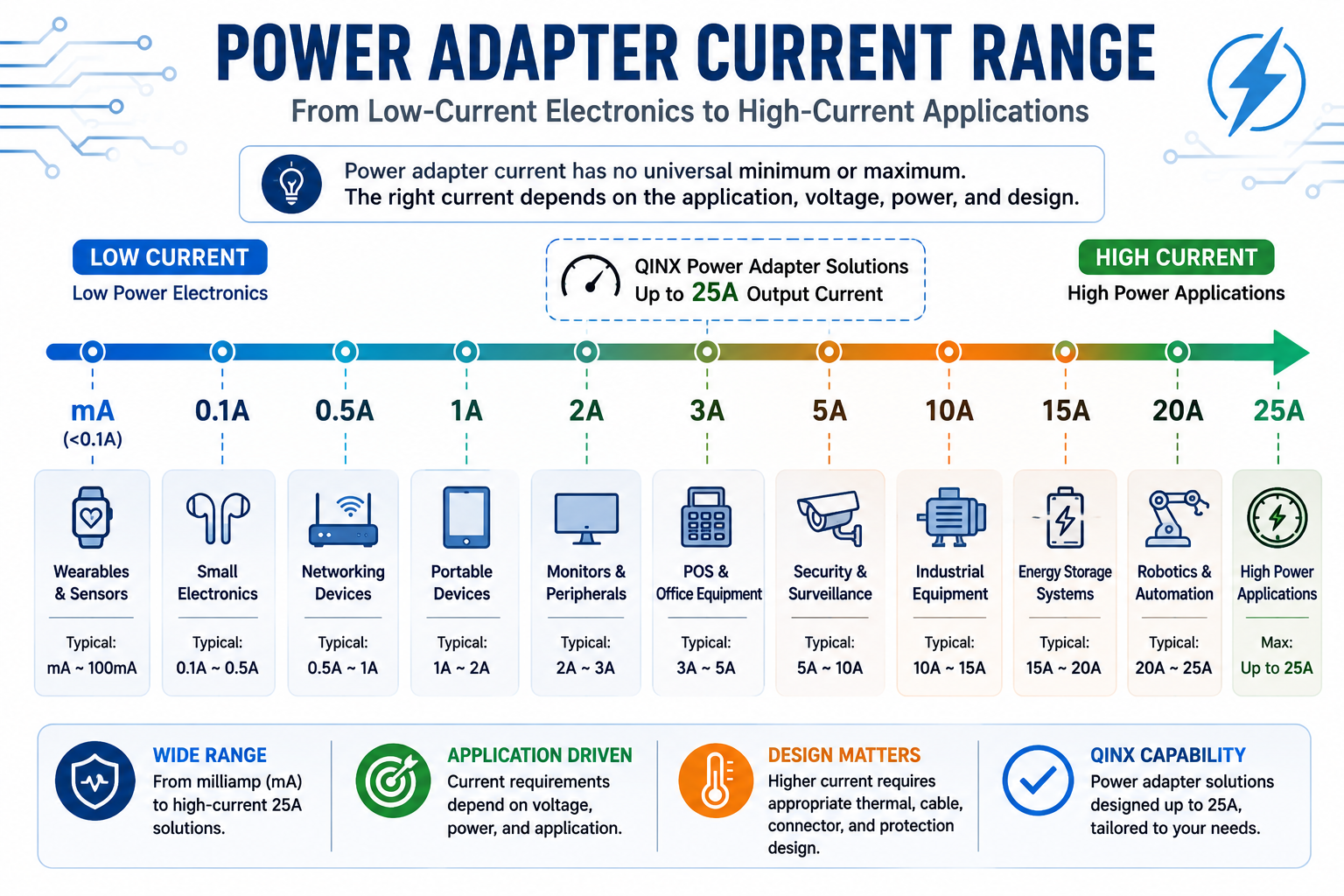

There is no single standard current rating that fits every application.
Depending on the voltage and power level, power adapters may be designed around various current ranges.
Common examples include:
The actual available combination of voltage, current, power, connector, enclosure, and certification depends on the product design.
Guangdong QINX supports AC/DC power adapter configurations across multiple output-voltage and power categories, including wall-mounted, desktop, interchangeable, and customized solutions.
For standard product options, explore AC/DC Power Adapters.

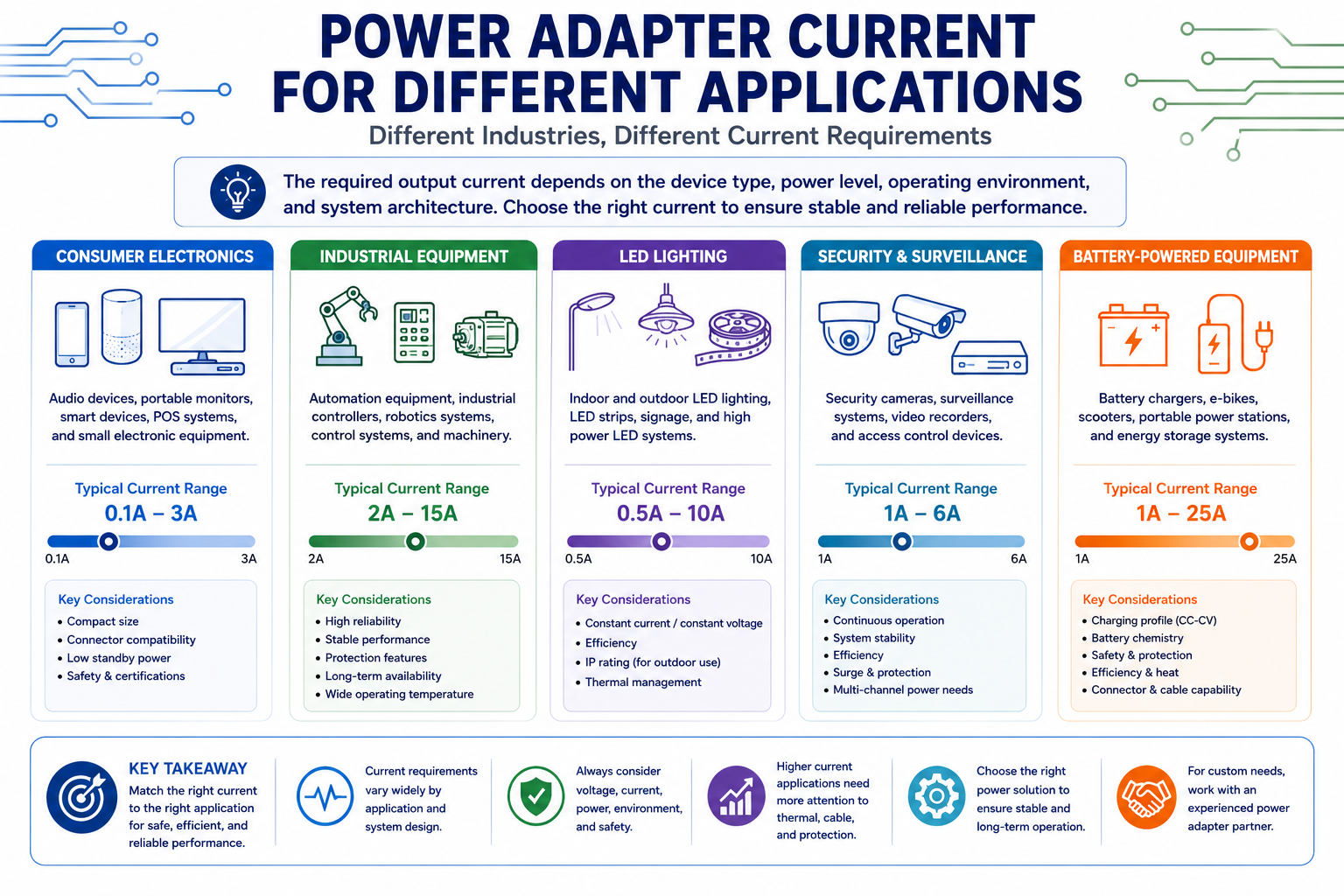

Different industries have different power and current requirements.
Consumer electronics often require relatively low to medium power.
Typical applications may include:
For these applications, connector compatibility, compact design, efficiency, and stable output can be particularly important.
Relevant application pages include:
Power Adapter for Audio Equipment
Industrial equipment can have significantly higher power requirements.
Applications may include:
For these applications, current capacity, reliability, protection, operating environment, thermal design, and long-term availability can all influence power adapter selection. For more information, see Power Adapter for Industrial Equipment.
LED systems can require a wide range of output-current levels depending on the lighting configuration.
For outdoor or demanding environments, waterproof power supplies may also be required.
Security cameras and surveillance equipment can require different power levels depending on the system configuration.
A centralized system may have different requirements from a single camera.
For example, NVR systems and CCTV cameras may require different power architectures. For more information, see Power Adapter for CCTV Security Cameras.
Battery-powered equipment may use a dedicated battery charger rather than a conventional fixed-output power adapter.
In these applications, current is part of the charging profile and must be evaluated together with battery chemistry, charging voltage, charging method, and battery configuration.
For battery charging applications, see How To Choose The Right Battery Charger for guidance on selecting the appropriate charger.

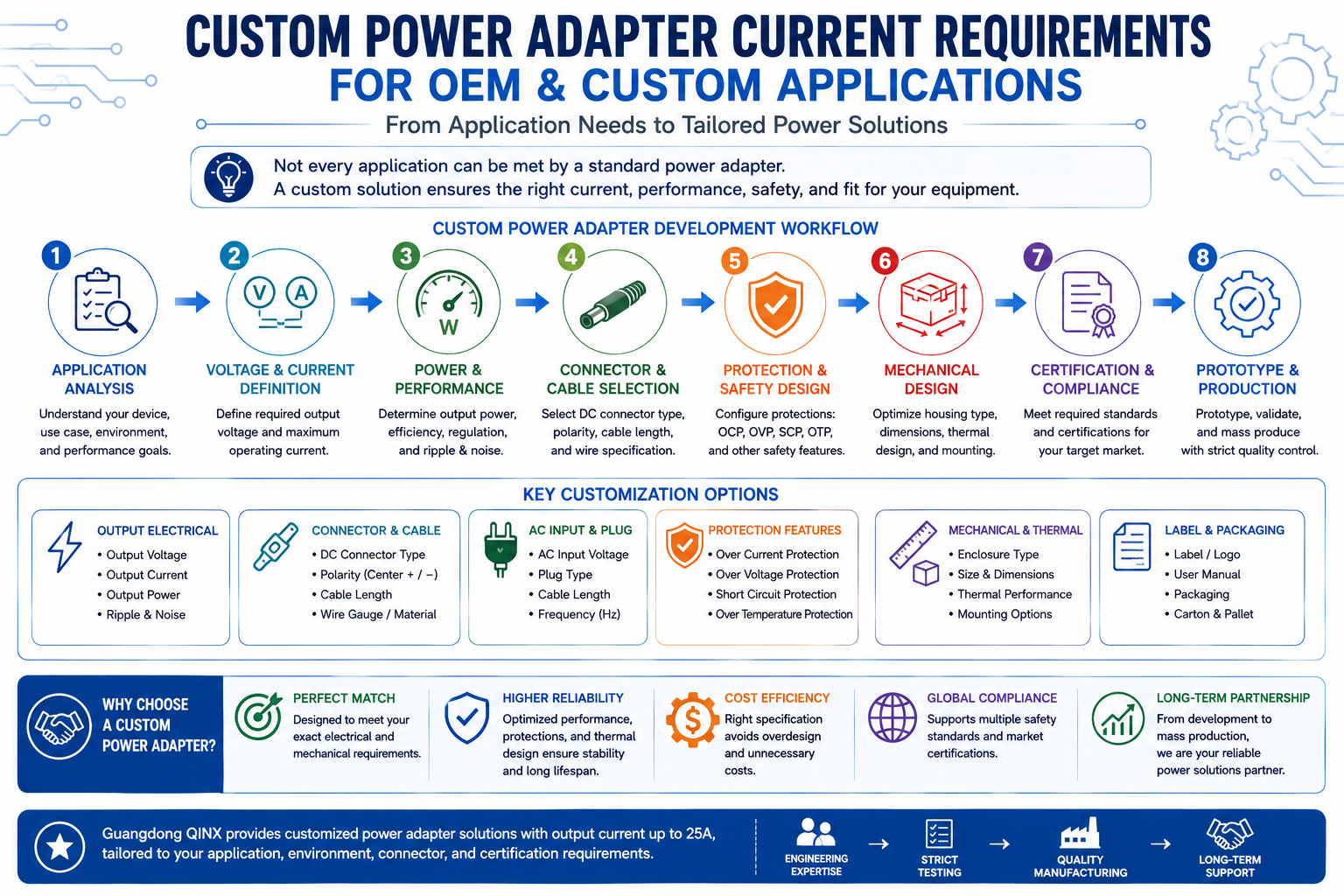

Standard adapters are suitable for many applications, but some equipment requires a customized power solution.
A custom project may require a specific combination of:
For example, an equipment manufacturer may need a:
24V high-current power adapter
with a specific connector, cable length, enclosure, and certification configuration.
In this situation, simply selecting an off-the-shelf adapter may not provide the required mechanical or electrical configuration.
Guangdong QINX can evaluate application-specific requirements for AC/DC power adapter projects and develop suitable configurations based on equipment requirements.
For OEM customers, the process normally begins with understanding the application and electrical specifications before determining the appropriate power architecture. For application-specific requirements, explore our Custom Power Adapter solutions.
For companies looking for a long-term manufacturing partner, learn more about our Power Adapter Manufacturer capabilities.

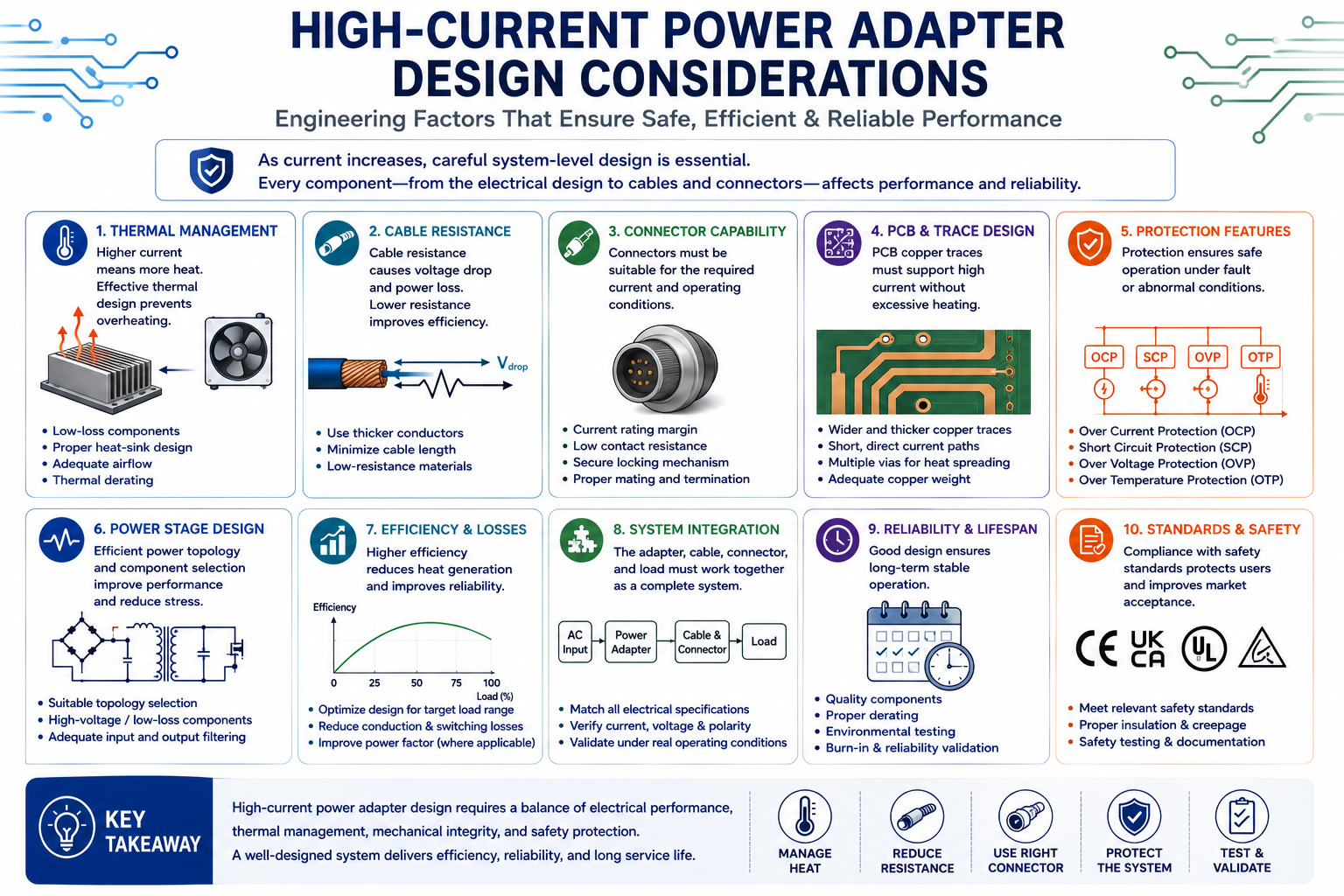

When output current becomes relatively high, several additional engineering factors become increasingly important.
Higher current generally means greater heat-related considerations.
The adapter enclosure, components, PCB, transformer, cables, and connectors must be considered as part of the thermal design.
Cable resistance can create voltage drop and heat generation.
Cable selection therefore becomes more important as current increases.
A connector must be suitable for the required current.
A connector that is physically compatible with a DC plug may not necessarily be appropriate for every high-current application.
Connector contact resistance and temperature rise should also be considered.
Higher-current applications should be evaluated for appropriate protection functions such as:
The exact protection configuration depends on the product architecture and application requirements.
As power increases, the overall AC/DC design may require additional engineering considerations.
For higher-power AC/DC products, customers should discuss the complete input and output requirements with the manufacturer rather than selecting a product solely by its current rating.
Depending on the power level, input voltage, target market, and applicable requirements, power factor correction (PFC) may also be required.
The easiest way to select the correct current rating is to follow a systematic process.
Check the equipment label, datasheet, user manual, or original adapter.
The output voltage of the replacement adapter should match the equipment’s specified voltage unless the equipment specifically supports an alternative voltage range.
Look for a specification such as:
12V 3A
or:
24V 5A
If the equipment specifies maximum operating current, startup current, or a recommended adapter rating, use the manufacturer’s requirements.
Use:
W = V × A
For example:
24V × 5A = 120W
This allows you to compare the required load power with the adapter’s rated output power.
Confirm:
A connector that physically fits is not necessarily electrically suitable.
Determine whether the adapter will be used:
The operating environment can affect thermal performance, enclosure requirements, protection, and reliability.
Depending on the target market and application, certification and regulatory requirements may apply.
Possible requirements can include:
Guangdong QINX can discuss certification and configuration requirements based on the target market and application.
If a standard product cannot meet the required current, connector, cable length, mechanical dimensions, operating environment, or certification requirements, a customized power adapter may be more appropriate. For application-specific requirements, learn more about OEM & Custom Power Supply Manufacturing.
Before purchasing or specifying a power adapter, check the following:
If the required current is unclear, check the original equipment manufacturer’s specification or consult the equipment designer.
Do not estimate current solely from the physical size of the device.
5A means the power adapter is rated to provide up to 5 amperes of output current under its specified operating conditions.
It does not mean that every connected device will automatically draw 5A.
At the same output voltage, a 5A adapter has greater current capacity than a 3A adapter.
However, whether it is suitable for a particular device depends on voltage, polarity, connector, power, and other specifications.
A higher-current adapter can often be suitable for a conventional regulated constant-voltage load when the output voltage and other electrical specifications are compatible. However, the complete device requirements should always be checked. For a more detailed explanation, see Can I Use A Higher Amp Power Adapter?.
The adapter may experience voltage drop, instability, overheating, or protection shutdown depending on the adapter design and load.
No.
25A represents the adapter’s maximum rated current capacity under specified conditions.
The actual load determines how much current is drawn.
Guangdong QINX AC/DC power adapter solutions can be designed with output current up to 25A, depending on the output voltage, power level, product architecture, connector, cable, thermal requirements, and application.
The exact voltage/current/power combination should always be confirmed according to the project specification.
Selecting a power adapter should not be based on amps alone.
The major factors should be evaluated together:
The adapter output voltage must match the device’s required input voltage.
The adapter should have sufficient current capacity for the device’s maximum expected operating requirements.
Power can be calculated using:
Power (W) = Voltage (V) × Current (A)
The connector type and dimensions must be compatible with the equipment.
The DC polarity must be correct.
For example, a common configuration is:
Center Positive
but polarity should always be verified rather than assumed.
Cable gauge, length, connector termination, and current capability should be appropriate for the application.
Depending on the application, protection functions may include:
The required certifications depend on the destination market, product type, application, and applicable regulations.
Power adapter current is the amount of electrical current that an adapter is designed to provide to a connected load under its specified operating conditions.
The most important relationship to remember is:
Power = Voltage × Current
or:
W = V × A
There is no universal minimum current rating for all power adapters. The appropriate current depends on the connected equipment and its operating requirements.
At the other end of the range, power adapter current can reach much higher levels for specialized applications. Guangdong QINX supports AC/DC power adapter solutions with output current designs up to 25A, depending on voltage, power, connector, thermal design, product architecture, and application requirements.
At the same time, the maximum current should not be considered independently from the maximum power capability of a particular product platform. QINX AC/DC power adapter solutions are designed up to 420W, with the actual voltage/current combination determined by the specific product configuration.
When selecting a power adapter, do not look at amps alone.
Always evaluate:
Voltage + Current + Power + Connector + Polarity + Cable + Protection + Certification
For standard power adapter requirements, explore our AC/DC Power Adapters.
For application-specific requirements, explore our Applications.
For OEM and customized projects, visit our Custom Power Adapter solutions.
When the electrical requirements are clear, choosing the correct power adapter becomes much easier: match the voltage, provide sufficient current capacity, verify the complete electrical and mechanical specifications, and select a power solution designed for the actual application.
