14.6V 4A (4000mA) 58.4W 4S LiFePO4 Battery Charger with Anderson Torberry DC Connector

Product Overview

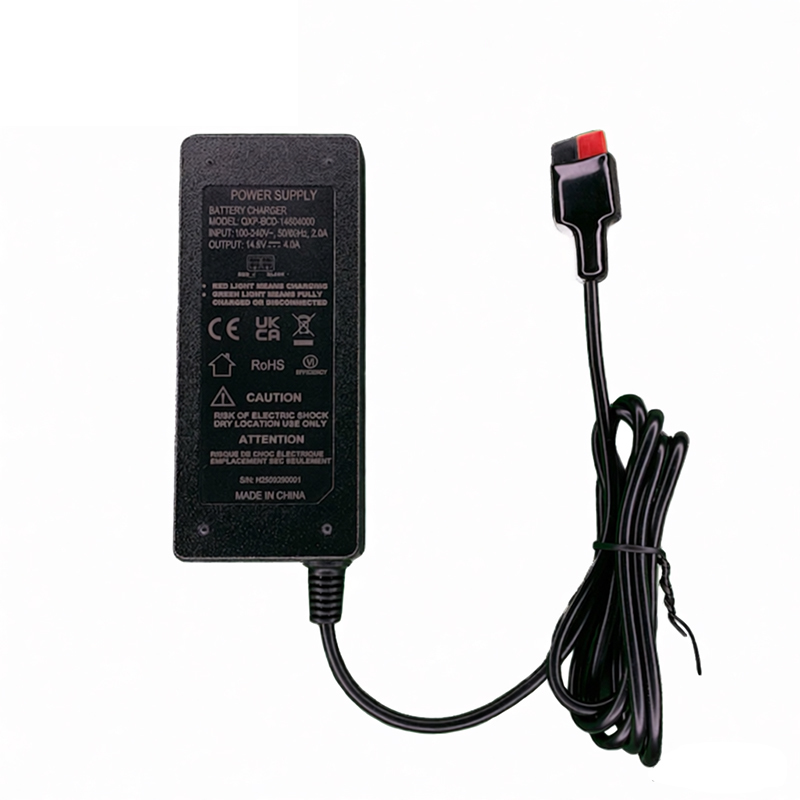

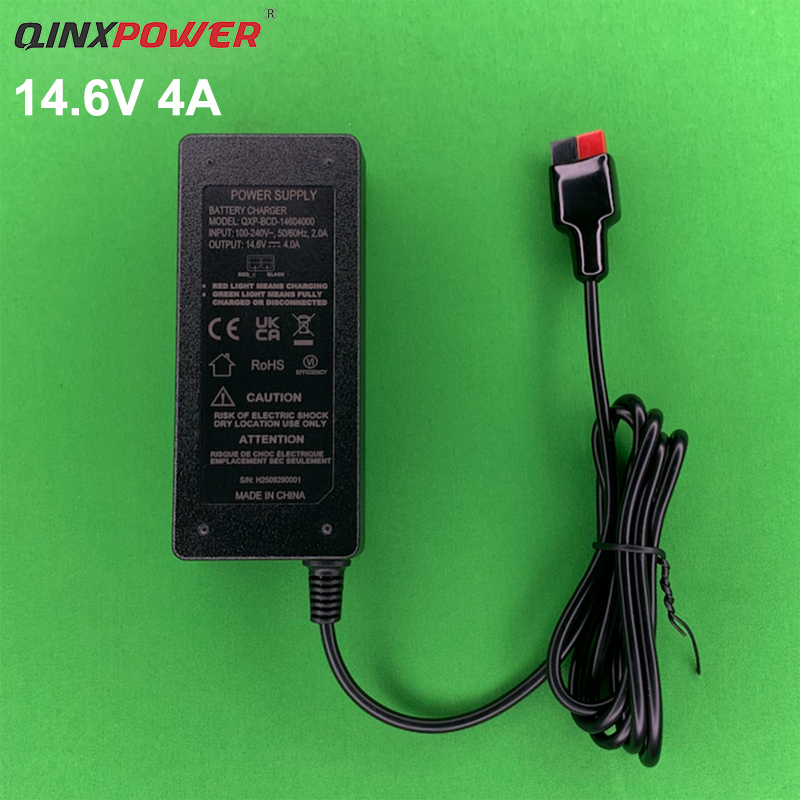

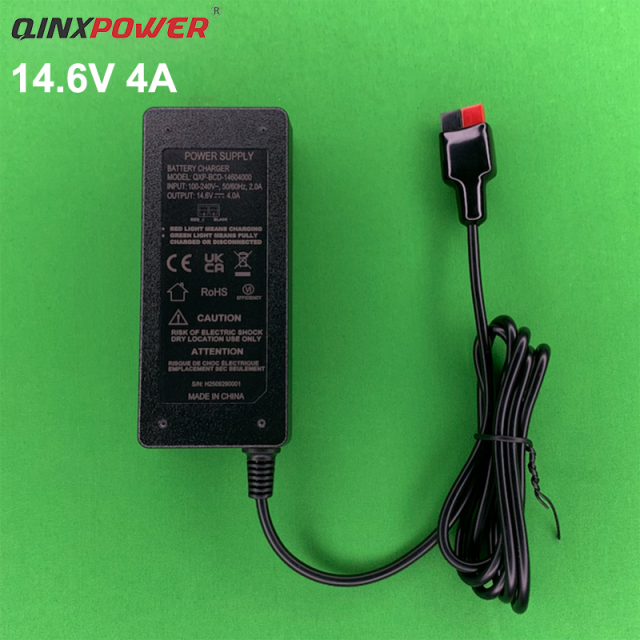

The Guangdong QINX Technology Co., Ltd. 14.6V 4A 58.4W LiFePO4 battery charger is designed for 4S LiFePO4 battery packs requiring a regulated 14.6V charging output. With a 4A charging current and 58.4W rated output power, this desktop charger provides a practical charging solution for electric golf trolleys and other compatible battery-powered equipment.

The charger uses a universal 100–240VAC input and is designed for international B2B applications. Its Anderson Torberry DC connector provides a practical connection option for compatible battery systems, while the DC cable can be supplied at 1.2m or customized according to project requirements.

For manufacturers and distributors sourcing standard or customized charging solutions, Guangdong QINX offers a range of LiFePO4 battery chargers covering different charging voltages, currents, power levels, battery configurations and connector requirements. This allows customers to select a standard charging platform or discuss a modified specification for a particular battery system.

The 4S configuration is important because the 14.6V charging voltage is intended for a four-cell LiFePO4 battery pack. Before selecting the charger, customers should confirm the battery chemistry, series configuration, required charging current, BMS requirements and connector compatibility.

Key Features

• 14.6V regulated charging output

• 4A / 4000mA charging current

• 58.4W rated charging power

• Designed for 4S LiFePO4 battery packs

• Universal 100–240VAC input

• Anderson Torberry DC connector

• 1.2m DC cable or customized cable length

• Level VI energy-efficiency design

• OVP, OCP, SCP and OTP protection

• Desktop charger housing

• OEM and ODM customization available

• Suitable for electric golf trolley applications

Technical Specifications

Energy Efficiency

The charger is designed around a Level VI energy-efficiency requirement, helping reduce unnecessary energy consumption during normal operation and standby conditions.

The 58.4W output rating does not fall within the automatic Active PFC threshold defined for higher-power products in the QINX product-page specification rules. Therefore, Active PFC is not presented as a fixed specification for this model unless the specific product configuration is separately confirmed.

Applications

This charger is primarily suited to compatible 4S LiFePO4 battery systems used in electric golf trolleys. Golf trolley manufacturers and distributors can use the 14.6V charging platform where the battery pack, BMS and connector configuration are compatible.

The product can also be considered for other compatible LiFePO4 battery-powered equipment where the required charging voltage is 14.6V and the charging current is 4A.

For broader battery-powered applications, Guangdong QINX provides power solutions for battery-powered equipment according to battery configuration, charging requirements, connector configuration and operating environment.

Connector Options

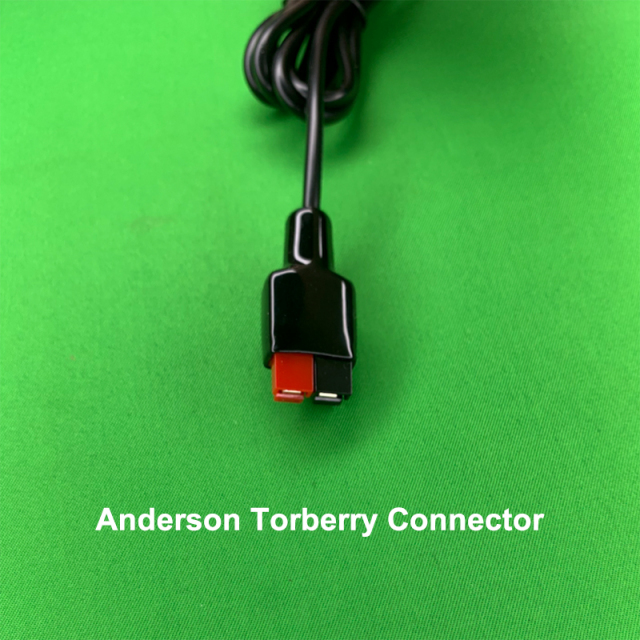

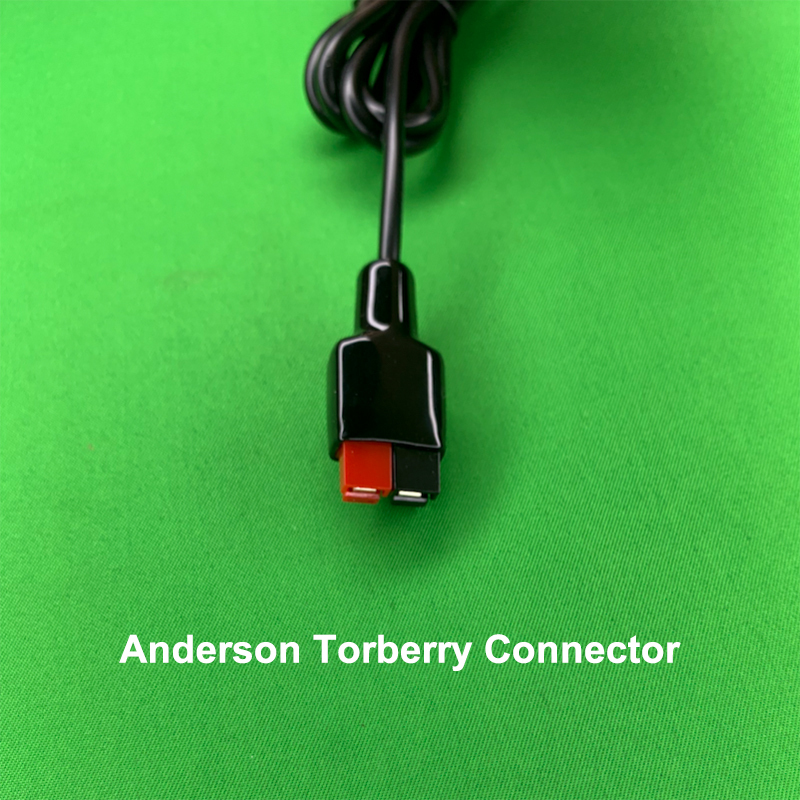

This model is specified with an Anderson Torberry DC connector for compatible golf trolley and battery-pack connections.

The standard configuration should be confirmed against the customer's battery-side connector before ordering. For OEM projects, Guangdong QINX can review connector requirements and support customized connector configurations where technically suitable.

Available customization may include connector type, connector configuration, cable length and cable specifications.

Protection Features

The charger includes the following protection functions:

• OVP (Over Voltage Protection)

• OCP (Over Current Protection)

• SCP (Short Circuit Protection)

• OTP (Over Temperature Protection)

These protection functions are intended to support safer operation under abnormal electrical or thermal conditions.

OEM & Custom Solutions

For customers whose existing golf trolley battery system requires a different connector, cable length or electrical specification, Guangdong QINX provides custom battery charger solutions.

Customization can include:

• Output voltage customization

• Charging current customization

• Cable length customization

• DC connector customization

• Product label customization

• Packaging customization

Product Development Support

Guangdong QINX can support customers through:

• Specification review

• Prototype support

• Functional testing

• Battery-system compatibility review

• Connector configuration review

Sample Validation

Prototype samples can be arranged for customer evaluation. Sample validation may include charger output testing, connector verification and system-level testing with the customer's battery system where required.

Engineering Support

Engineering support can cover:

• Electrical specification review

• Output adjustment

• Connector selection

• Cable configuration

• Product optimization

For battery chargers, final system compatibility should be confirmed against the customer's battery chemistry, series configuration and BMS requirements.

Manufacturing Capability

Requirement Analysis

The manufacturing process begins with a review of:

• Input requirements

• Output specifications

• Charging power requirements

• Connector requirements

• Cable configuration

• Application environment

Prototype Development

After specification confirmation, prototype samples can be prepared for:

• Prototype testing

• Output verification

• Connector verification

• System verification

Mass Production

For approved products, Guangdong QINX supports:

• Defined manufacturing processes

• Quality control procedures

• Production testing

• Electrical performance inspection

• Final quality inspection

This manufacturing approach supports both standard charger supply and repeat OEM production requirements.

Certification Information

Depending on product specifications, target markets, and customer requirements, Guangdong QINX products can be designed to meet applicable certifications and compliance requirements such as UL, cUL, SAA, PSE, UKCA, CE, RoHS, FCC, DOE Level VI and CB.

The applicable certification combination should be confirmed according to the final product configuration and target market.

FAQ

Is this charger designed for a 4S LiFePO4 battery pack?

Yes. The 14.6V charging output is designed for compatible 4S LiFePO4 battery packs. Battery chemistry, BMS configuration and charging requirements should be confirmed before use.

Is this charger suitable for electric golf trolleys?

It can be suitable for electric golf trolleys using a compatible 4S LiFePO4 battery system and Anderson Torberry connection. The battery and connector specifications should be verified before ordering.

Can the Anderson Torberry connector be customized?

Yes. Connector configuration can be reviewed for OEM projects. Customers can discuss alternative DC connector requirements, cable length and cable configuration with Guangdong QINX.

Can the charging current be customized?

Yes. Guangdong QINX supports charging-current customization according to the battery system and project requirements, subject to technical review.

Can the charger be supplied for different markets?

Yes. Depending on the final configuration and target market, applicable certifications and AC cable/plug configurations can be discussed for international projects.

Product Summary

The 14.6V 4A 58.4W 4S LiFePO4 battery charger provides a compact desktop charging solution for compatible four-cell LiFePO4 battery packs. With universal AC input, Anderson Torberry DC connectivity, Level VI efficiency and standard protection functions, it is particularly suitable for compatible electric golf trolley battery systems.

For OEM customers, Guangdong QINX can adapt output specifications, connectors, cable configurations, labels and packaging according to project requirements.

Request a Charger Specification

If you are sourcing a 14.6V 4A LiFePO4 charger for electric golf trolleys or another compatible 4S battery system, please contact Guangdong QINX with your battery configuration, BMS requirements, connector specification and target quantity.

Our team can review the requirements and provide a suitable standard or customized charging solution.
