LiFePO4 Charging Voltage Chart: A Complete Guide to 12V, 24V, 36V, and 48V Batteries

Short Introduction

Choosing the correct charging voltage is essential for safely charging a lithium iron phosphate (LiFePO4) battery. Although LiFePO4 batteries are commonly marketed as 12V, 24V, 36V, or 48V batteries, their nominal voltage differs from their recommended charging voltage. Using an incompatible charger may prevent a battery from reaching its intended charge level or trigger battery management system (BMS) protection.

This LiFePO4 charging voltage chart explains the typical voltage requirements for common battery configurations, including 12V, 24V, 36V, and 48V systems. It also covers series cell count, maximum charging voltage, charging current, CC/CV charging, float charging, temperature restrictions, and charger selection.

Whether you are sourcing a charger for electric mobility equipment, industrial machinery, portable power systems, or a custom battery-powered device, understanding these specifications will help you identify a suitable charging solution.

1. What Is LiFePO4 Charging Voltage?

LiFePO4 stands for lithium iron phosphate, a lithium-ion battery chemistry known for its relatively long cycle life and stable operating characteristics.

A LiFePO4 battery pack consists of individual cells connected in series and, when additional capacity is required, in parallel. The number of cells connected in series determines the pack’s nominal voltage and its maximum charging voltage.

Three voltage values are particularly important:

• Nominal voltage: The reference voltage used to describe a battery’s general operating voltage.
• Charging voltage: The voltage applied by the charger during the charging process.
• Maximum charging voltage: The upper charging voltage permitted by the cell or battery manufacturer.

A typical LiFePO4 cell has a nominal voltage of approximately 3.2V. A commonly specified maximum charging voltage is 3.65V per cell, although the permitted value depends on the cell model and battery design.

For example, a typical 12V-class LiFePO4 battery contains four cells connected in series.

Its nominal voltage is:

3.2V × 4 = 12.8V

If the battery manufacturer specifies a maximum charging voltage of 3.65V per cell, the corresponding pack voltage is:

3.65V × 4 = 14.6V

This explains why a typical 12V LiFePO4 battery uses a charger with a 14.6V charging target rather than a standard 12V power supply.

The same calculation applies to higher-voltage battery packs. However, calculated values are reference points, not universal charging instructions. The battery manufacturer’s specifications and BMS limits always take priority.

2. LiFePO4 Charging Voltage Chart by Battery Voltage

The following table summarizes common LiFePO4 battery configurations and their typical maximum charging voltages.

These reference values use a nominal cell voltage of 3.2V and a maximum charging voltage of 3.65V per cell.

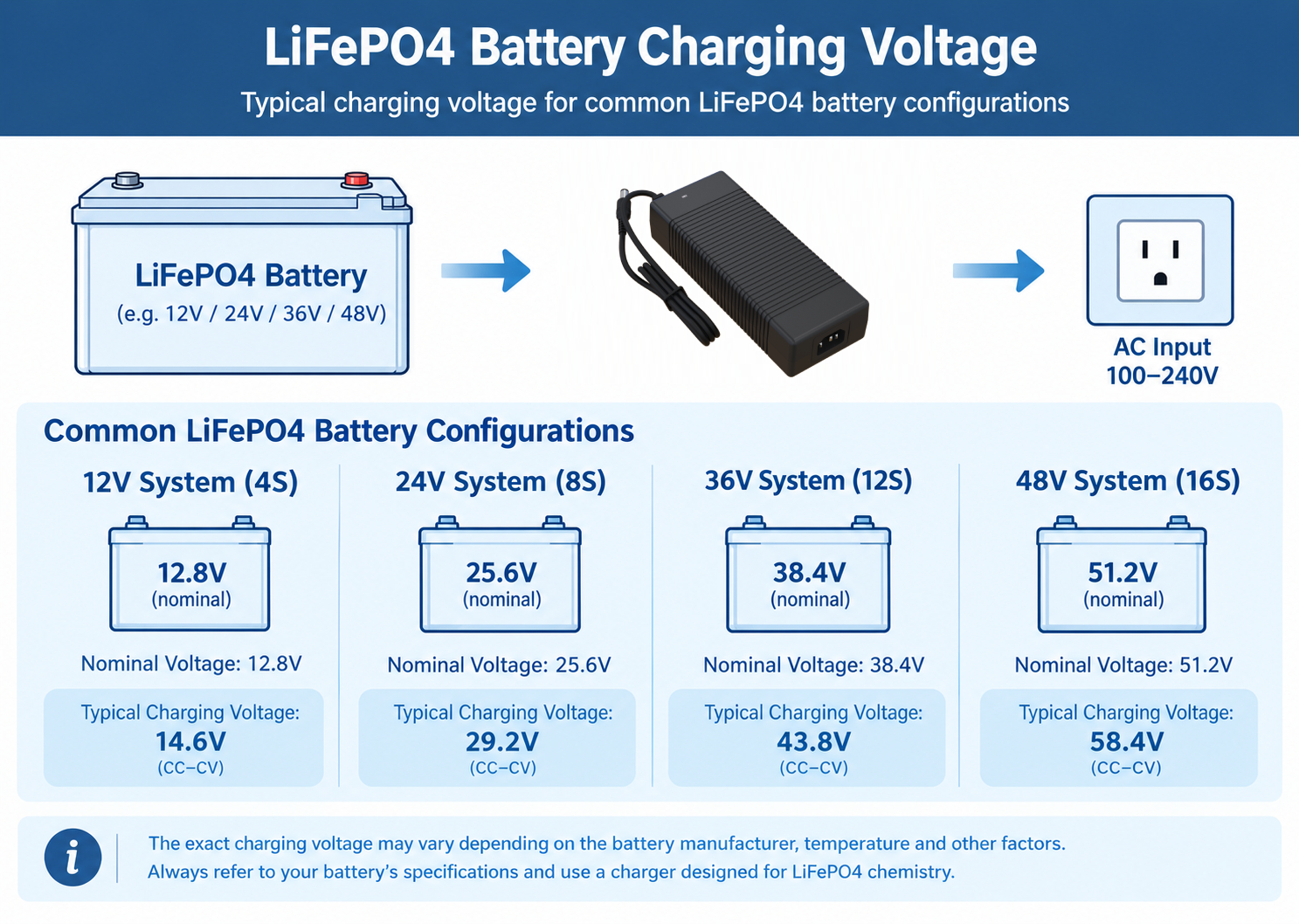

LiFePO4 Charging Voltage Chart

Important: Battery marketing labels do not always correspond exactly to nominal battery voltage. For example, a 36V-class LiFePO4 battery commonly has a nominal voltage of 38.4V, while a 48V-class battery commonly has a nominal voltage of 51.2V.

These classifications are commonly used to describe battery systems. Always verify the actual cell chemistry, series cell count, permitted charging voltage, and BMS specifications before selecting a charger.

Why Is Charging Voltage Higher Than Nominal Voltage?

Nominal voltage is a reference value used to describe the battery. It is not the voltage required to complete charging.

During charging, the charger supplies controlled current while the battery voltage rises. When the battery reaches the configured voltage target, the charger regulates the voltage and allows the charging current to decrease.

The charging target must be high enough to meet the battery manufacturer’s intended charging requirements, but it must not exceed the permitted voltage limit.

An excessively high charging voltage may trigger BMS overvoltage protection, interrupt charging, or create unsafe operating conditions if the battery’s protection system cannot respond appropriately.

The correct charger is one whose voltage, current limit, charging algorithm, and termination behavior match the battery manufacturer’s specifications.

3. 12V LiFePO4 Charging Voltage Chart

A typical 12V-class LiFePO4 battery contains four cells connected in series. Its nominal voltage is 12.8V, and its typical maximum charging voltage is 14.6V when the specified maximum charging voltage is 3.65V per cell.

12V LiFePO4 Battery Voltage Reference

A 14.6V charger is commonly used for compatible four-cell LiFePO4 batteries. However, some battery manufacturers specify a lower charging target to suit their cell design or intended operating conditions.

A lower approved charging target may reduce the maximum available capacity but can be appropriate for the application.

Can I Use a 12V Power Supply to Charge a 12V LiFePO4 Battery?

A standard 12V power supply is generally not a suitable substitute for a dedicated LiFePO4 battery charger.

Its output voltage may be too low to charge the battery to its intended full-charge level. An ordinary power supply may also lack the appropriate current regulation, charging termination behavior, or battery-specific functions.

A power adapter is primarily designed to provide a regulated DC output to an electronic device. A battery charger must meet the charging requirements of a particular battery chemistry and configuration.

For a detailed comparison, see AC/DC Power Adapter vs. Battery Charger: What’s the Difference?.

Before choosing a charger, confirm the battery chemistry, nominal voltage, maximum charging voltage, charging current, connector polarity, and any BMS communication requirements.

4. 24V LiFePO4 Charging Voltage Chart

A typical 24V-class LiFePO4 battery consists of eight cells connected in series.

Its nominal voltage is 25.6V, and its typical maximum charging voltage is 29.2V.

24V LiFePO4 Battery Voltage Reference

A 29.2V charger is a common choice for an eight-cell LiFePO4 battery when the manufacturer specifies this charging target.

These battery systems may be used in portable power equipment, industrial devices, electric mobility products, and other battery-powered applications.

For OEM projects, charger selection involves more than matching the output voltage. Charging current, connector type, cable length, AC input requirements, enclosure design, protection features, and applicable certifications may also need to be considered.

For example, an industrial product may require a desktop charger with a specific DC connector and cable length, while a compact consumer device may require a wall-mounted design.

Confirming these requirements before ordering samples can reduce unnecessary design changes and testing iterations.

5. 36V LiFePO4 Charging Voltage Chart

A typical 36V-class LiFePO4 battery uses twelve cells connected in series.

Its nominal voltage is 38.4V, and its typical maximum charging voltage is 43.8V.

36V LiFePO4 Battery Voltage Reference

A 43.8V charger is a common reference for a compatible 12S LiFePO4 battery.

However, not every battery marketed as 36V uses LiFePO4 chemistry. Other lithium-ion chemistries have different nominal cell voltages and charging requirements.

For example, a 42V charger commonly used for a 10S lithium-ion battery with a 4.2V maximum charging voltage per cell must not automatically be substituted for a 43.8V LiFePO4 charger.

The correct choice depends on the battery chemistry, series cell count, and manufacturer’s approved charging profile.

For mobility equipment, portable machinery, and industrial battery systems, confirming these specifications is essential.

6. 48V LiFePO4 Charging Voltage Chart

A typical 48V-class LiFePO4 battery consists of sixteen cells connected in series.

Its nominal voltage is 51.2V, and its typical maximum charging voltage is 58.4V.

48V LiFePO4 Battery Voltage Reference

A 58.4V charger is commonly used with compatible 16S LiFePO4 battery packs.

These batteries may be used in energy storage systems, backup power equipment, industrial machinery, and electric mobility applications.

However, a product label stating “48V” does not establish the correct charging voltage. Batteries using different chemistries or configurations may require different charging targets.

For high-capacity battery systems, charger selection should also account for the permitted charging current, battery temperature limits, BMS requirements, and installation conditions.

Some battery systems require CAN, RS-485, or another communication protocol between the battery and charging system. In such cases, a conventional standalone charger may not meet the system requirements.

7. LiFePO4 Charging Voltage by Cell Count

One reliable way to determine the reference charging voltage is to calculate it from the number of cells connected in series.

The basic formula is:

Typical maximum pack charging voltage = Series cell count × Specified maximum charging voltage per cell

Using 3.65V per cell as a common reference gives the following table.

LiFePO4 Cell Count and Charging Voltage Chart

These calculations use a nominal cell voltage of 3.2V and a typical maximum charging voltage of 3.65V.

The 5S and 10S configurations illustrate why calculating from the actual series cell count is more reliable than selecting a charger based only on a rounded marketing label.

Adding cells in parallel increases battery capacity and current capability, but it does not increase the pack’s nominal voltage or maximum charging voltage. The number of cells connected in series determines the voltage.

Important: These figures are general reference values. Some battery manufacturers specify lower charging targets. Always follow the cell and battery specifications, including the BMS limits.

8. LiFePO4 Charging Voltage vs. State of Charge

Battery voltage can provide useful information about charging status, but it is not a perfectly accurate measurement of state of charge (SOC).

LiFePO4 batteries have a relatively flat voltage curve across much of their operating range. As a result, different SOC values can produce similar voltage readings.

Measured voltage also varies with charging current, discharge current, temperature, measurement timing, and the battery’s recent operating history.

Why Is LiFePO4 State of Charge Difficult to Estimate from Voltage?

For many LiFePO4 batteries, voltage changes relatively little across the middle portion of the discharge curve.

A battery at one intermediate SOC may therefore show a voltage similar to that of a battery with a noticeably different remaining capacity.

Voltage readings are particularly difficult to interpret while a battery is charging or discharging because current and internal resistance affect the terminal voltage.

The voltage measured immediately after charging may also differ from the voltage measured after the battery has rested.

How to Estimate LiFePO4 State of Charge More Reliably

For applications that require accurate battery monitoring:

1. Use the battery manufacturer’s voltage and SOC reference data.
2. Measure voltage under the conditions specified by the manufacturer.
3. Allow the battery to rest when a resting-voltage measurement is required.
4. Consider a compatible battery monitor or coulomb-counting system when greater SOC accuracy is necessary.
5. Ensure that the monitoring system is configured for LiFePO4 chemistry.

A battery’s charging voltage should not be selected by estimating its SOC. The charger must match the battery’s approved charging profile regardless of the current charge level.

9. What Is the Correct LiFePO4 Bulk and Absorption Voltage?

LiFePO4 chargers commonly use constant-current/constant-voltage charging, abbreviated as CC/CV.

During the constant-current stage, the charger supplies a controlled current while the battery voltage rises.

When the battery reaches the configured voltage target, the charger regulates the voltage while the charging current gradually decreases.

The voltage target must match the battery manufacturer’s specifications.

For example, if a four-cell LiFePO4 battery is specified for a maximum charging voltage of 14.6V, a compatible charger may use 14.6V as its constant-voltage target. Another battery may require a lower target.

Is Bulk Voltage the Same as Absorption Voltage?

Terminology varies between charger manufacturers.

Some use “bulk” to describe the constant-current stage, while others use the term for the charging phase leading toward the voltage limit.

“Absorption” commonly refers to the period when the charger maintains a regulated voltage and the charging current decreases.

Because these terms are not always used consistently, it is more useful to verify the actual voltage setpoint, current limit, charging algorithm, and termination conditions than to rely on a stage name alone.

For a more detailed explanation of this charging method, see CC CV Charging Explained.

Does Every LiFePO4 Battery Need the Same Absorption Time?

No. Charging duration and termination requirements depend on the battery design, capacity, cell specifications, BMS, and charger configuration.

Some chargers terminate charging when the current falls below a defined threshold. Others use a combination of voltage, current, time, and control signals.

An arbitrary absorption period should not be applied without considering the battery manufacturer’s requirements.

For OEM applications, these parameters should be confirmed during battery and charger integration.

10. Does a LiFePO4 Battery Need Float Charging?

LiFePO4 batteries generally do not require continuous float charging in the same way that many traditional lead-acid battery systems do.

A lead-acid charger may maintain a battery at a defined float voltage to compensate for self-discharge. LiFePO4 batteries have different charging characteristics, and continuously holding them at a high state of charge is not always necessary or desirable.

However, whether a LiFePO4 charger should include a float stage depends on the battery manufacturer’s recommendations and the intended application.

Should You Disable Float Charging for LiFePO4?

Do not assume that every float function must always be disabled or that every charger with a float stage is unsuitable.

Some chargers provide configurable standby or float settings that are compatible with particular battery designs. Other batteries specify that charging should stop after the main charging cycle.

Before using a charger for long-term standby operation, confirm:

• Whether the battery manufacturer permits float charging.
• The approved float voltage, if applicable.
• Whether the charger terminates the main charging cycle automatically.
• Whether periodic recharging is required.
• Whether the battery is intended for continuous connection to a charger.

A charger intended for unattended operation should be evaluated as part of the complete battery system, including the BMS, charging control, and operating environment.

11. How to Choose the Correct LiFePO4 Battery Charger

Choosing a LiFePO4 charger requires more than matching a nominal battery voltage.

A suitable charger must provide the correct charging voltage, an appropriate current limit, a compatible charging profile, and the electrical and mechanical features required by the application.

11.1 Confirm the Battery Chemistry

First, confirm that the battery uses lithium iron phosphate chemistry.

LiFePO4 is a type of lithium-ion battery, but its nominal cell voltage and charging requirements differ from those of other lithium-ion chemistries.

A charger designed for another chemistry may have an unsuitable voltage target or charging algorithm.

Never select a charger based solely on a general description such as “lithium battery charger.” Confirm the exact chemistry and charging requirements.

For a more detailed comparison, see LiFePO4 Charger vs. Lithium-Ion Charger. For charging voltage information across different battery chemistries, see our Battery Charger Voltage Chart: Li-ion, LiFePO4 & Lead Acid.

11.2 Confirm the Series Cell Count and Charging Voltage

Check the battery datasheet or manufacturer’s label for the series cell count and permitted charging voltage.

Common reference configurations include:

• 4S LiFePO4: 12.8V nominal; typical maximum charging voltage 14.6V.
• 8S LiFePO4: 25.6V nominal; typical maximum charging voltage 29.2V.
• 12S LiFePO4: 38.4V nominal; typical maximum charging voltage 43.8V.
• 16S LiFePO4: 51.2V nominal; typical maximum charging voltage 58.4V.

These values assume a typical maximum charging voltage of 3.65V per cell. The battery manufacturer’s specified charging voltage takes priority.

11.3 Select the Correct Charging Current

Charging current affects charging time, battery temperature, and battery life.

The permitted current depends on battery capacity, cell specifications, BMS limits, thermal conditions, and the manufacturer’s recommendations.

A common way to express charging current relative to battery capacity is the C-rate.

For example, a 20Ah battery charged at 10A is being charged at 0.5C:

10A ÷ 20Ah = 0.5C

This calculation describes the charging current relative to battery capacity. It does not establish that 0.5C is suitable for every 20Ah LiFePO4 battery.

Before selecting a charger, confirm the battery’s recommended charging current and the current limit supported by its BMS.

For further guidance, see Battery Charger Current Explained.

11.4 Confirm the Charging Profile

A suitable LiFePO4 charger generally uses a charging profile designed for the battery chemistry, commonly controlled CC/CV charging with appropriate voltage regulation and termination behavior.

Battery packs with integrated communication, specialized BMS controls, or application-specific requirements may need additional functions.

Select the charger according to the complete battery specification rather than assuming that all LiFePO4 batteries use identical settings.

11.5 Check the DC Connector and Polarity

The DC connector must fit the battery or charging port, and its electrical polarity must be correct.

Check the following:

• Connector type and dimensions.
• Center-positive or center-negative polarity, where applicable.
• Cable length and wire gauge.
• Connector and cable current ratings.
• Locking requirements.
• Waterproofing requirements, where applicable.
• Additional identification pins or communication contacts.

A connector that looks similar to the original may have different dimensions, pin assignments, or current ratings.

Always verify the connector specification before connecting the charger.

For additional guidance, see How to Choose the Correct DC Plug Size.

11.6 Consider AC Input and Charger Design

The charger must also match the intended power source and physical installation.

Depending on the application, buyers may need to confirm:

• AC input voltage and frequency.
• Regional AC plug type.
• Wall-mounted or desktop construction.
• Output cable length.
• Operating temperature range.
• Enclosure protection requirements.
• Applicable safety and regulatory requirements.
• Required electrical isolation and protection features.

For commercial and industrial applications, document these specifications before sample approval.

11.7 Review Safety and Protection Requirements

The BMS is an important part of the battery system, but it should not be treated as a substitute for selecting the correct charger.

Depending on the application, the charging system may need protection against output overvoltage, overcurrent, short circuits, overheating, and other relevant fault conditions.

The exact requirements depend on the charger design, battery specifications, application, and applicable standards.

Temperature limits are especially important. Many standard LiFePO4 batteries must not be charged below 0°C unless the specific battery is designed and approved for low-temperature charging under defined conditions.

Some battery packs include low-temperature charging protection or integrated heating. These features must be verified rather than assumed.

The charger’s operating-temperature rating and the battery’s permitted charging-temperature range are separate specifications.

For a broader overview, see How to Choose the Right Battery Charger.

12. What Happens If the LiFePO4 Charging Voltage Is Too High?

Charging a LiFePO4 battery above its specified voltage limit can cause several problems.

The BMS may disconnect the charging path when it detects an overvoltage condition. This can interrupt charging and cause repeated shutdowns or unexpected reconnection behavior.

If the protection system is absent, incorrectly configured, or unable to respond as intended, excessive cell voltage can create more serious battery degradation and safety risks.

Possible consequences include:

• BMS overvoltage protection activation.
• Interrupted or unstable charging.
• Increased stress on individual cells.
• Reduced battery service life.
• Battery damage or unsafe operating conditions.

Individual cells may reach their voltage limits at different times because of cell imbalance, capacity differences, temperature variations, or other factors.

A pack can therefore experience an individual-cell overvoltage condition even when the total pack voltage appears reasonable.

Can a Higher-Voltage Charger Be Used if the BMS Protects the Battery?

Do not rely on the BMS to make an incompatible charger safe.

The BMS may disconnect charging when an individual cell reaches its upper limit, but repeatedly triggering this protection is not a substitute for correct voltage regulation.

The charger should meet the battery manufacturer’s requirements under normal operating conditions.

If the charger has an adjustable output, verify the adjustment range and final voltage setpoint before connecting it to the battery.

13. What Happens If the LiFePO4 Charging Voltage Is Too Low?

A charging voltage below the manufacturer’s recommended target may prevent the battery from reaching its intended full-charge state.

Depending on the charging profile, the battery may stop charging at a lower state of charge, reducing the available energy for the application.

However, a lower charging voltage is not necessarily incorrect. Some battery manufacturers intentionally specify lower targets for particular designs or operating conditions.

The important distinction is between a lower voltage approved by the manufacturer and an arbitrary mismatch caused by selecting the wrong charger.

For example, a standard 12V power supply is generally insufficient to fully charge a typical 12.8V nominal LiFePO4 battery using a conventional charging profile.

By contrast, a dedicated charger with a lower voltage target may be appropriate if the battery manufacturer explicitly approves that setting.

The correct charging voltage must therefore be selected from the battery documentation, not simply from its nominal voltage label.

14. Can You Use a Lead-Acid Charger for a LiFePO4 Battery?

A lead-acid charger should not automatically be used with a LiFePO4 battery.

Lead-acid and LiFePO4 batteries have different charging characteristics. A lead-acid charger may include equalization, desulfation, temperature compensation, or float behavior that is unsuitable for a particular lithium battery.

Some chargers support multiple battery chemistries and provide a dedicated LiFePO4 mode. Such a charger may be suitable if its lithium charging profile, voltage, current, and other functions match the battery manufacturer’s requirements.

Before using a charger originally designed for lead-acid batteries, verify that:

1. The charger explicitly supports the target LiFePO4 battery or its required charging profile.
2. The maximum output voltage is within the battery manufacturer’s limits.
3. The charging current does not exceed the permitted battery current.
4. Equalization and desulfation functions are disabled or not applied in the selected lithium mode.
5. Float and termination behavior are compatible with the battery.
6. The battery manufacturer permits the intended charger configuration.

When any of these points is uncertain, use a charger specifically designed and approved for the battery chemistry.

15. Can You Charge a LiFePO4 Battery in Cold Weather?

Temperature is an important factor in LiFePO4 charging.

Many standard LiFePO4 cells prohibit charging below 0°C because low-temperature charging can increase the risk of lithium plating under certain conditions.

The permitted charging-temperature range depends on the cell design and battery manufacturer’s specifications.

For cold-weather applications, verify:

• The battery manufacturer’s minimum charging temperature.
• Whether the battery includes low-temperature charging protection.
• Whether the pack has an integrated heating system.
• Whether charging current must be reduced at low temperatures.
• Whether the charger and battery controller exchange temperature information.

If a battery includes a heater, the charging system may need to follow a defined heating sequence before charging begins.

A charger that can operate in freezing weather does not automatically make the connected battery suitable for charging at the same temperature.

For outdoor equipment and systems installed in unheated environments, temperature behavior should be considered during battery and charger design.

16. LiFePO4 Charging Time: Voltage Is Only One Factor

Charging voltage determines the upper voltage target, but it does not determine charging time by itself.

Charging time also depends on battery capacity, charging current, starting state of charge, charging efficiency, temperature, and the current reduction that occurs during the constant-voltage stage.

A simplified estimate is:

Approximate charging time in hours = Battery capacity in Ah ÷ Charging current in A

For example, a 20Ah battery charged at 5A gives:

20Ah ÷ 5A = 4 hours

This is a simplified estimate, not a guaranteed full-charge time.

Actual charging usually takes longer because the charger may reduce current as the battery approaches its voltage limit. The battery may also limit current because of temperature, BMS settings, or cell-level conditions.

Example: Charging a 20Ah LiFePO4 Battery

Suppose a compatible 12.8V nominal, 20Ah LiFePO4 battery is approved for charging at 5A.

A charger with the correct charging voltage and a 5A current limit may provide a suitable solution, subject to the battery manufacturer’s specifications.

The theoretical capacity-to-current calculation gives four hours, but actual charging time depends on the battery’s initial state of charge and the behavior of the charging system.

A 10A charger should not automatically be selected simply to reduce charging time. The battery must permit the higher current, and the charger, connector, cable, and thermal design must all support it.

17. Common LiFePO4 Charging Voltage Mistakes

Understanding the charging voltage chart helps prevent several common selection errors.

Mistake 1: Treating Nominal Voltage as Charging Voltage

A 12.8V nominal LiFePO4 battery may require a charging voltage of up to 14.6V, depending on its specifications.

Selecting a 12V charger simply because the battery is called a 12V battery can result in incomplete charging.

Mistake 2: Confusing LiFePO4 with Other Lithium-Ion Chemistries

Different lithium-ion chemistries have different nominal cell voltages and charging limits.

A charger designed for one chemistry should not be substituted for another without approval from the battery manufacturer.

Mistake 3: Assuming Every Battery Uses a 3.65V Per-Cell Charging Target

Although 3.65V is a common maximum charging reference for LiFePO4 cells, the battery manufacturer may specify a lower target.

Always use the approved charging voltage for the particular battery.

Mistake 4: Ignoring BMS Specifications

The BMS may define limits for charging current, cell voltage, temperature, and communication.

A charger that meets the nominal pack voltage requirement may still be unsuitable if it conflicts with the BMS specifications.

Mistake 5: Choosing Charging Current Without Checking Battery Capacity

A charger with excessive current can exceed the battery’s permitted charging rate.

Select current based on the battery manufacturer’s recommendations rather than charging speed alone.

Mistake 6: Using a Generic Power Adapter Instead of a Battery Charger

A regulated power adapter may provide a stable DC output, but that does not mean it supports the charging profile required by a LiFePO4 battery.

Use a charger designed for the battery’s charging requirements.

Mistake 7: Ignoring Temperature Restrictions

A battery may have a lower charging-temperature limit than the charger has an operating-temperature limit.

Confirm the battery’s temperature restrictions before charging in cold environments.

Mistake 8: Assuming All Products Marketed as 48V Have the Same Charging Voltage

A nominal-voltage label does not establish the cell chemistry or series cell count.

Verify the battery’s actual specifications before selecting a charger.

18. LiFePO4 Battery Charger Solutions for OEM Applications

For manufacturers integrating LiFePO4 batteries into their products, charger selection should begin with the complete electrical specification.

The correct solution depends on the battery configuration, intended operating environment, charging time requirements, mechanical design, and regulatory needs of the finished product.

Guangdong QINX Technology Co., Ltd. develops and manufactures AC/DC power adapters and battery chargers for OEM and commercial applications. For LiFePO4 charging projects, the starting point is to establish the required output voltage, current, battery chemistry, and charging profile.

Key Specifications to Confirm Before Requesting a Quote

Providing these details helps reduce unnecessary sampling iterations and supports a more accurate technical evaluation.

Standard Chargers vs. Customized Chargers

A standard charger may be suitable when its output voltage, current, charging profile, connector, cable, enclosure, and required approvals already match the application.

Customization may be needed when the project requires a special connector, a different cable length, a particular enclosure, a non-standard output specification, or other application-specific requirements.

Changes to output voltage, current regulation, charging algorithms, protection functions, or communication interfaces may require engineering evaluation and validation.

For OEM projects, customization feasibility should be confirmed before the design is finalized.

Learn more about Custom Battery Charger and OEM Battery Charger.

Choosing a Battery Charger Manufacturer

A suitable manufacturing partner should be able to review battery specifications, confirm electrical requirements, explain available product configurations, and identify limitations before samples are produced.

Important considerations include engineering support, sample evaluation, quality control, production consistency, traceability, and documentation for the intended market.

Guangdong QINX works with customers seeking AC/DC power adapters and battery charging products for commercial and OEM applications. Project requirements should be evaluated individually to determine the appropriate product configuration.

For further guidance, see How to Choose a Battery Charger Manufacturer.

19. Frequently Asked Questions About LiFePO4 Charging Voltage

What Is the Correct Charging Voltage for a 12V LiFePO4 Battery?

A typical 12V-class LiFePO4 battery has a nominal voltage of 12.8V and consists of four cells connected in series. Its common maximum charging voltage is 14.6V when the specified maximum charging voltage is 3.65V per cell.

Always follow the battery manufacturer’s charging instructions.

What Is the Correct Charging Voltage for a 24V LiFePO4 Battery?

A typical 24V-class LiFePO4 battery uses an 8S configuration, has a nominal voltage of 25.6V, and commonly has a maximum charging voltage of 29.2V.

The approved charging voltage may differ depending on the battery design.

What Is the Correct Charging Voltage for a 36V LiFePO4 Battery?

A typical 36V-class LiFePO4 battery uses twelve cells in series. Its nominal voltage is 38.4V, and its common maximum charging voltage is 43.8V.

Confirm the battery chemistry and series cell count before selecting a charger.

What Is the Correct Charging Voltage for a 48V LiFePO4 Battery?

A typical 48V-class LiFePO4 battery uses sixteen cells in series, has a nominal voltage of 51.2V, and commonly has a maximum charging voltage of 58.4V.

The battery manufacturer’s specification takes priority over the nominal voltage label.

Can I Charge a LiFePO4 Battery to 100% Every Time?

Whether regular charging to the maximum permitted voltage is appropriate depends on the battery manufacturer’s recommendations and the intended application.

Some applications require maximum available capacity, while others may prioritize long-term storage conditions or reduced time at a high state of charge.

Follow the battery manufacturer’s instructions rather than assuming that every battery should always be charged to the same target.

Is 14.6V Too High for a 12V LiFePO4 Battery?

Not necessarily. A charging voltage of 14.6V is common for a compatible four-cell LiFePO4 battery when the cell manufacturer’s maximum charging voltage is 3.65V.

However, some batteries specify a lower charging target. The battery datasheet determines whether 14.6V is appropriate.

Can I Use a 14.4V Charger for a 12V LiFePO4 Battery?

It depends on the charger’s charging profile and the battery manufacturer’s permitted charging voltage.

A 14.4V target is lower than 14.6V, but a lower voltage is not automatically approved for every battery. Check the battery documentation and confirm that the charger provides the required current regulation and termination behavior.

Does a LiFePO4 Battery Need a Special Charger?

A LiFePO4 battery requires a charger that matches its chemistry-specific charging requirements.

A dedicated LiFePO4 charger is usually the most straightforward choice. A multi-chemistry charger may also be suitable if its LiFePO4 mode is explicitly compatible with the battery’s voltage, current, and charging profile.

Can I Leave a LiFePO4 Battery Connected to the Charger?

That depends on the charger and battery design.

Some combinations support standby operation, while others require charging to stop after the main charging cycle. Verify the manufacturer’s instructions for float behavior, termination, and long-term connection.

Can I Charge a LiFePO4 Battery Below 0°C?

Many standard LiFePO4 batteries must not be charged below 0°C unless specifically designed and approved for low-temperature charging.

Always confirm the battery’s permitted charging-temperature range and whether it includes low-temperature protection or heating.

Does a Higher-Amp Charger Charge a LiFePO4 Battery Faster?

A charger with a higher current rating may reduce charging time if the battery permits the higher current and the charging system can deliver it safely.

However, the battery’s maximum charging current, BMS limit, temperature, and constant-voltage charging stage all affect actual charging time.

What Is the Difference Between LiFePO4 Charging Voltage and Float Voltage?

Charging voltage refers to the voltage used during the main charging process. Float voltage refers to a lower voltage that some charging systems use to maintain a battery during standby.

LiFePO4 batteries do not universally require float charging. Whether a float setting is suitable depends on the battery manufacturer’s recommendations and the charger’s behavior.

Conclusion: Use Battery Specifications to Select the Correct LiFePO4 Charger

A LiFePO4 charging voltage chart is a useful starting point for identifying the appropriate charger voltage, but the battery’s nominal voltage alone is not enough.

For common configurations, the typical reference values are:

• 12V-class LiFePO4: 12.8V nominal, 14.6V typical maximum charging voltage.
• 24V-class LiFePO4: 25.6V nominal, 29.2V typical maximum charging voltage.
• 36V-class LiFePO4: 38.4V nominal, 43.8V typical maximum charging voltage.
• 48V-class LiFePO4: 51.2V nominal, 58.4V typical maximum charging voltage.

These values assume a typical maximum charging voltage of 3.65V per cell. Actual charging requirements may differ according to the cell manufacturer, battery design, BMS, and intended application.

Before choosing a charger, confirm the battery chemistry, series cell count, approved charging voltage, maximum charging current, connector, temperature limits, and charging profile.

For OEM and commercial applications, these specifications should be reviewed together to ensure that the charger matches the battery and finished product.

Guangdong QINX Technology Co., Ltd. supports commercial power supply and battery charger projects that require technical evaluation for specific applications.

If you are sourcing a charger for a LiFePO4 battery pack, prepare the battery datasheet and required electrical specifications before requesting a quotation. This helps determine whether a standard charger is suitable or whether a customized solution should be evaluated.

Technical Note: The voltage values in this article are general reference values, not universal charging instructions. Always follow the battery and cell manufacturer’s specifications, including any requirements imposed by the BMS.
