Before selecting a power adapter, it is important to understand what a power adapter is and how it converts AC power into regulated DC power for electronic devices. If you are new to power supplies, we recommend reading our guide on What Is a Power Adapter? to learn the fundamentals of adapter types, working principles, and common applications.
Selecting the correct power adapter is essential for ensuring the safety, reliability, and performance of electronic devices. Whether you are sourcing adapters for industrial equipment, audio devices, LED displays, networking systems, or consumer electronics, choosing the wrong specification can lead to equipment damage, shortened product lifespan, or certification problems.
As a professional manufacturer of power adapters and battery chargers, Guangdong QINX Technology Co.,LTD. frequently assists customers in selecting suitable power solutions for both standard and customized applications.
Many buyers focus only on voltage and overlook other important specifications.
An unsuitable adapter may result in:
Device malfunction
Excessive heat generation
Reduced product lifespan
Safety risks
Certification compliance issues
Increased warranty claims
For OEM and industrial projects, selecting the correct adapter from the beginning can save significant development costs.

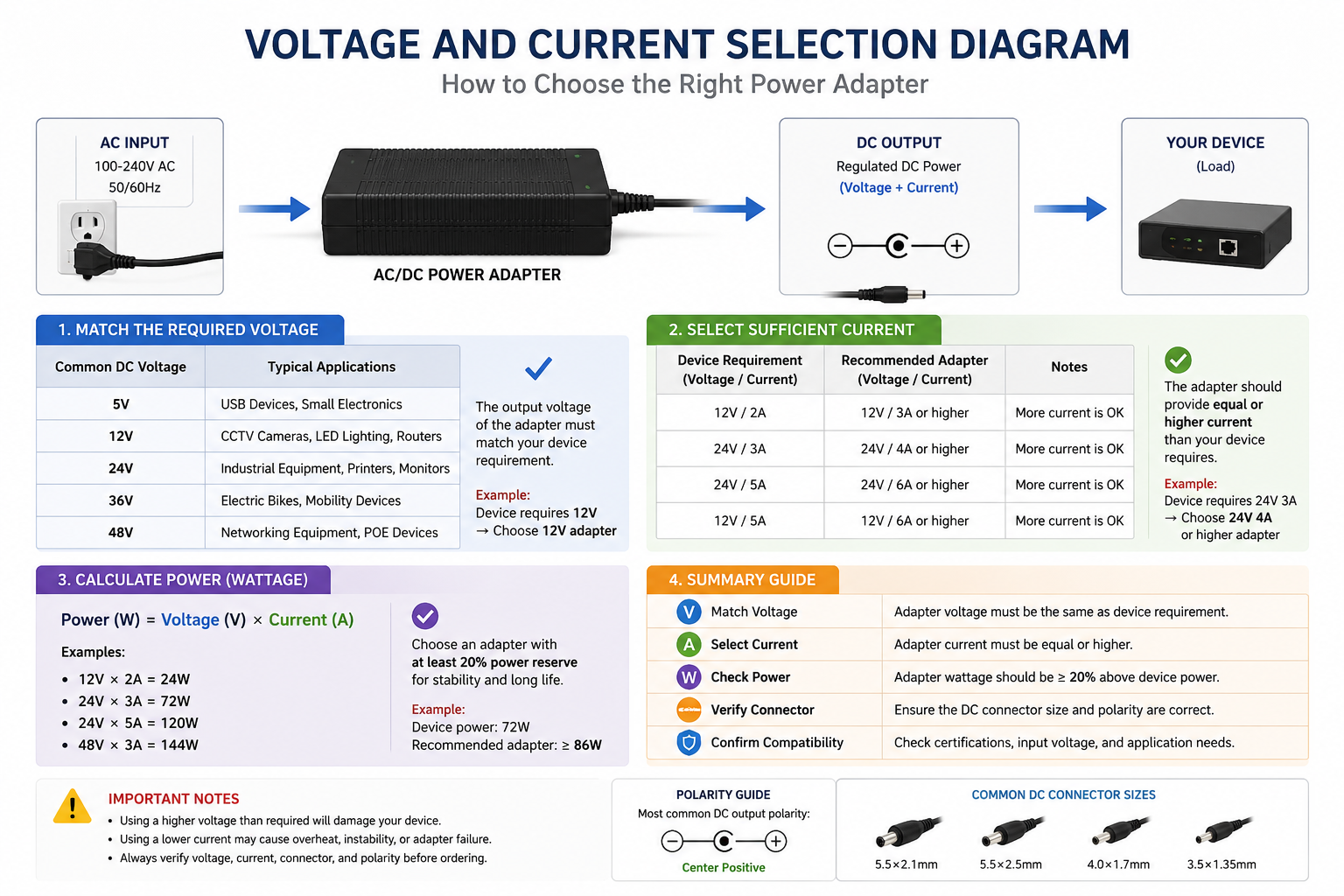

Voltage is the first specification that must match your device requirements.
Common output voltages include:
| Output Voltage | Typical Applications |
|---|---|
| 5V | USB Devices |
| 12V | CCTV Cameras, LED Lighting |
| 24V | Industrial Equipment |
| 36V | Mobility Devices |
| 48V | Networking Equipment |
Examples:
12V Device → 12V Adapter
24V Device → 24V Adapter
Using a higher voltage than required may permanently damage equipment.
Current (Amps) indicates how much power the adapter can supply.
Examples:
A power adapter may provide more current capacity than required. The connected device will only draw the current it needs.
However, using an adapter with insufficient current capability may cause:
Voltage drop
Overheating
Adapter failure
Power is calculated using:
Power (W) = Voltage (V) × Current (A)
Examples:
12V × 5A = 60W
24V × 5A = 120W
48V × 3A = 144W
For improved reliability, Guangdong QINX generally recommends maintaining at least 20% power reserve above normal operating load.
Example:
Device Requirement: 100W
Recommended Adapter: 120W or higher
This helps improve thermal performance and long-term reliability.

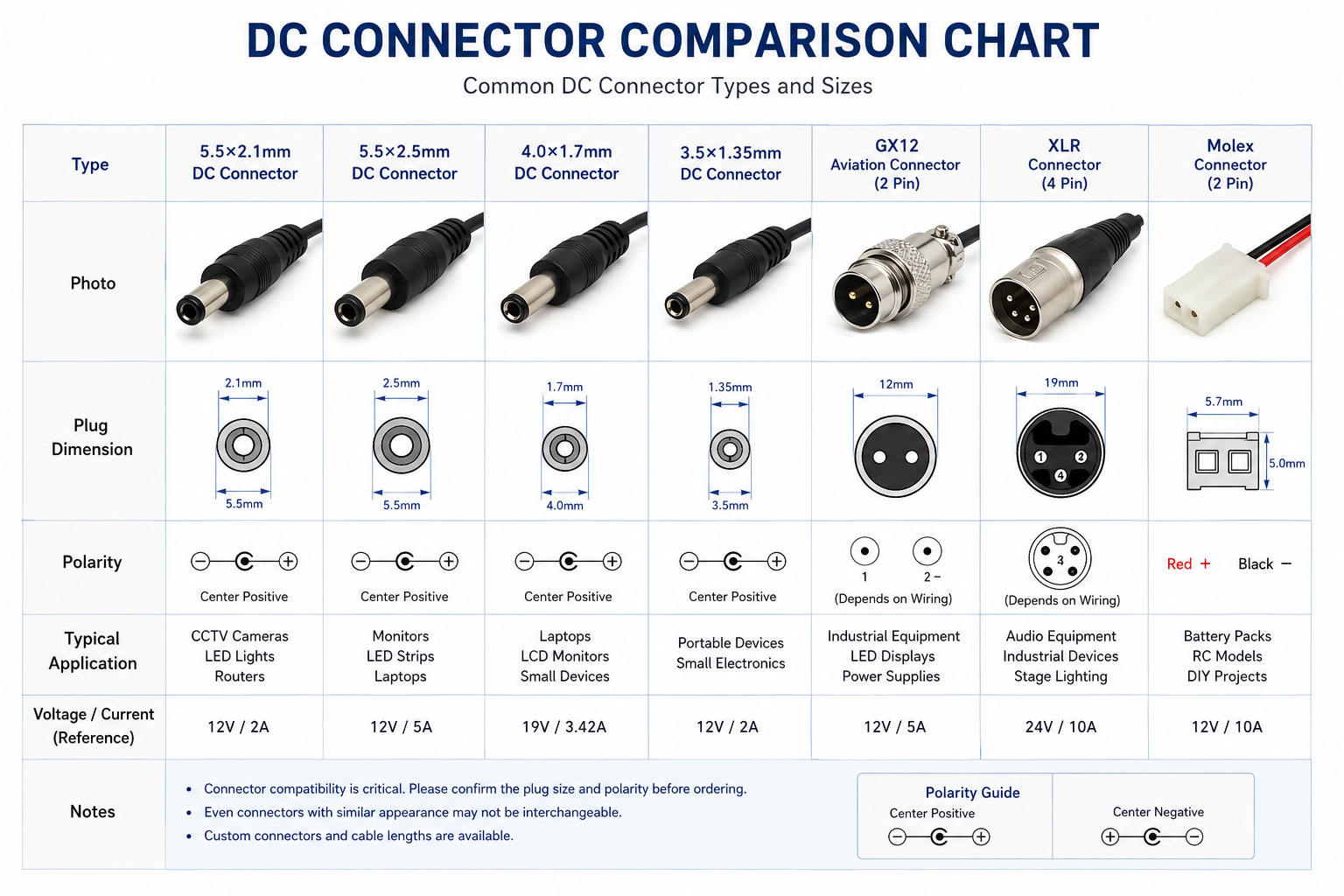

One of the most common sourcing mistakes involves connector selection.
Common connector types include:
5.5×2.1mm
5.5×2.5mm
XLR Connectors
GX Aviation Connectors
Molex Connectors
Locking DC Connectors
Although some connectors appear identical, they may not be interchangeable.
In many projects, connector mismatch causes more delays than voltage or current issues.
Most modern adapters support:
100-240V AC
This universal input range allows operation worldwide.
For international projects, verify compatibility with:
US Power Systems
European Power Systems
UK Power Systems
Australian Power Systems
Japanese Power Systems
Adapters with interchangeable plugs can simplify global deployment.

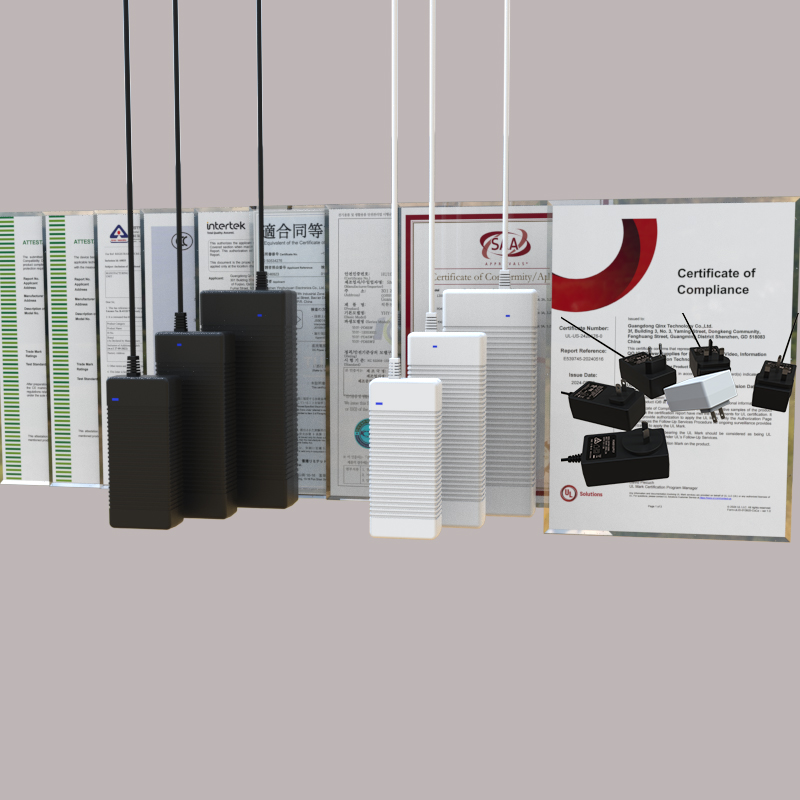

Certification requirements vary by market.
Common certifications include:
UL
cUL
FCC
CE
UKCA
PSE
SAA
CB
RoHS
Failure to obtain the correct certifications may prevent products from entering target markets.
Guangdong QINX supports multiple international certification requirements for OEM and ODM projects.
Environmental factors are often overlooked.
Questions to consider:
Indoor or outdoor use?
High humidity?
High temperature?
Continuous operation?
Medical environment?
Industrial environment?
Applications with demanding operating conditions may require enhanced protection and specialized power supply designs.
Different applications require different power adapter specifications.
LED lighting systems commonly use:
When selecting an adapter for LED strips or LED displays, ensure sufficient power margin to accommodate startup current and continuous operation.
Most security cameras operate on 12V DC.
Important considerations include:
Industrial equipment often requires:
Industrial environments may also require certifications and long operating lifetimes.
Medical applications place greater emphasis on:
Manufacturers should verify all applicable certification requirements before product development.
Networking devices commonly use:
Stable voltage regulation is critical for reliable operation.
Yes.
For example, if a device requires 24V 3A, a 24V 5A adapter is generally acceptable because the device will draw only the current it requires.
No.
Using an adapter with insufficient current capacity may cause overheating, voltage instability, or premature failure.
No.
Supplying a higher voltage than specified may permanently damage the equipment.
Always match the required voltage exactly.
Even if voltage and current are correct, an incompatible connector may prevent operation or cause connection issues.
Connector dimensions should always be verified before ordering samples.
Based on Guangdong QINX's experience, many sourcing delays are caused by incomplete technical specifications.
Customers often provide:
but overlook:
As a result, multiple sample revisions may be required before final approval.
To improve project efficiency, Guangdong QINX recommends providing complete specifications at the beginning of the project whenever possible.
This helps reduce development time, minimize costs, and improve overall product reliability.
The most serious mistake and can permanently damage equipment.
Many connector sizes appear similar but are not interchangeable.
Operating continuously at 100% load reduces lifespan.
May delay product launch and increase compliance costs.
Based on our experience at Guangdong QINX, the most common customer issue is not voltage selection—it is connector verification.
Many customers provide only voltage and current requirements while overlooking connector dimensions, polarity, and installation constraints.
We also frequently see projects selecting adapters with no power reserve, resulting in higher operating temperatures and reduced reliability.
Providing detailed device specifications before sampling can significantly reduce development time and prevent costly revisions.

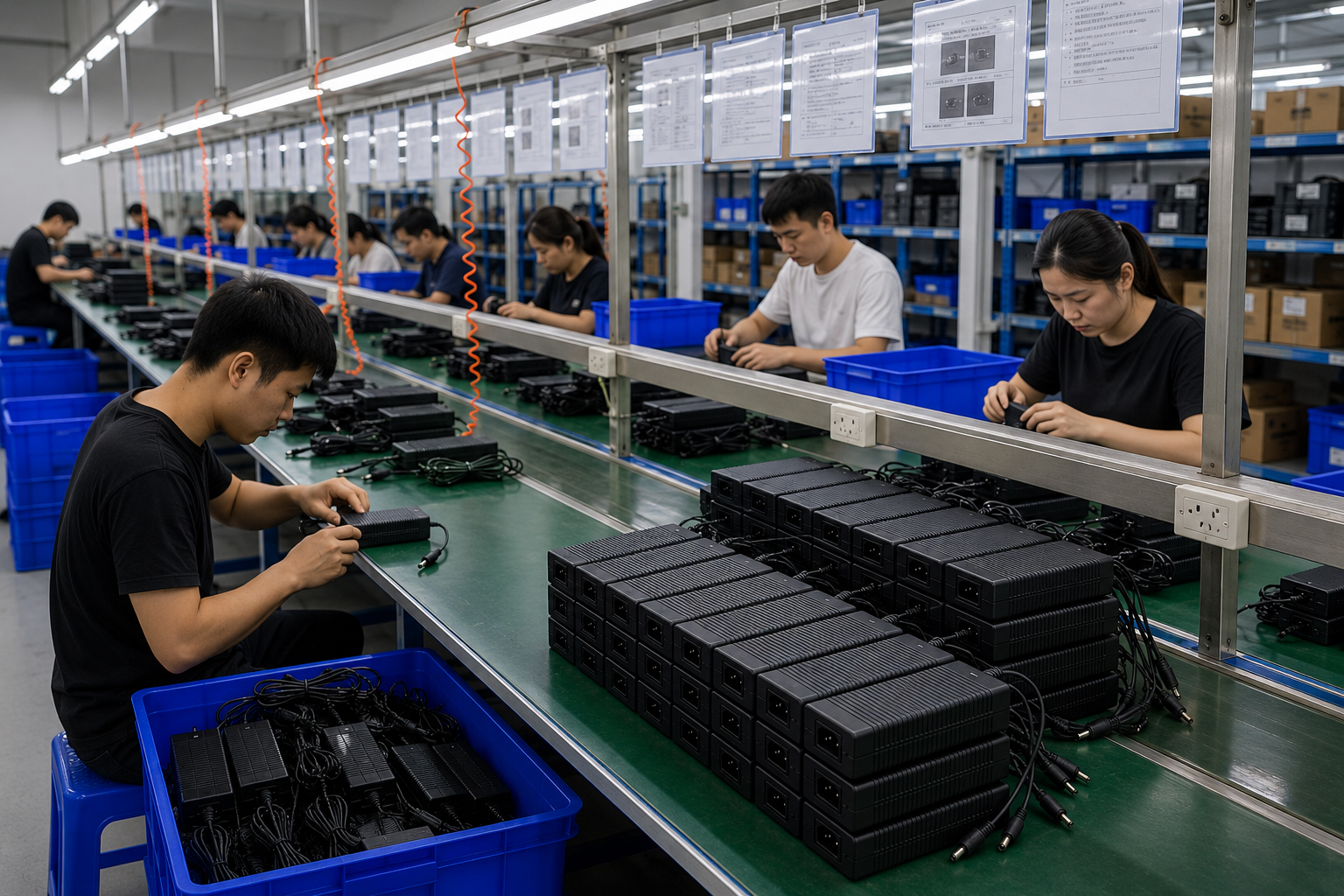

Power Adapter Production and Quality Control Process
An experienced manufacturer can provide:
Technical consultation
Product customization
Global certifications
Engineering support
Faster development cycles
Stable long-term supply
For industrial and OEM projects, partnering with an experienced manufacturer can reduce risk and improve product performance.
AC DC Power Supply Manufacturer
Choosing the right power adapter involves much more than matching voltage. Current capacity, power margin, connector compatibility, environmental requirements, and certification standards all play critical roles in ensuring reliable operation.
By evaluating these factors carefully, businesses can reduce failures, improve product reliability, and accelerate project development.
